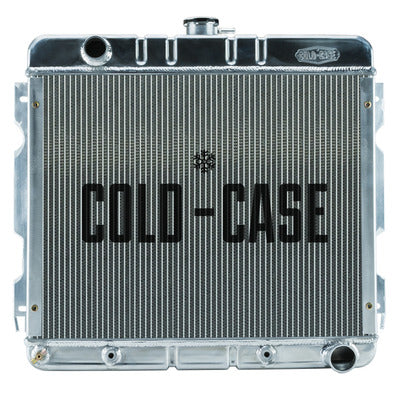

Cold Case Radiators 70-74 A/B Body SB Radiator AT 17x22in
CCRMOP755A (1 in stock)Cold Case Radiators
Regular price
$397.99
Sale
1970-1974 Mopar A,B Body Small Block Aluminum Performance Radiator. AT Cars. Fits some of the following. Double check dimensions
- 71-74 Barracuda (original shroud won't fit. Use our electric fan kit)
- 70-72 Dart
- 71-72 Demon
- 71-72 Duster
- 71-72 Valiant
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Automatic trans
- Radiator - 25 in W x 22.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Automatic - Mopar A-Body / B-Body 1970-72
Radiator Specs:
- Core Height 17 inch
- Core Width 22 inch
- Overall Height 22.5 inch
- Overall Width 25 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
Specifications
Brand | Cold Case Radiators |
Part Number | MOP755A |
Old Part Number | RPE755A |
Application Specific
|
Yes
|
Pass
|
Single
|
Row Number
|
2
|
Overall Width
|
25 in
|
Overall Height
|
22-1/2 in
|
Overall Depth
|
3 in
|
Core Width
|
22 in
|
Core Height
|
17 in
|
Inlet Side
|
Driver Side
|
Inlet Upper/Lower
|
Upper
|
Inlet Size
|
1-1/2 in
|
Inlet Style
|
Hose Barb
|
Inlet Quantity
|
1
|
Outlet Side
|
Passenger Side
|
Outlet Upper/Lower/Middle
|
Lower
|
Outlet Size
|
1-49/64 in
|
Outlet Style
|
Hose Barb
|
Outlet Quantity
|
1
|
Tube Size
|
1-1/4 in
|
Fluid Cooler
|
Yes
|
Flow Direction
|
Downflow
|
Cap Included
|
No
|
Fan Included
|
No
|
Material
|
Aluminum
|
Color
|
Polished
|
Finish
|
Polished
|
Quantity
|
Each
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Dodge, Plymouth
Engine: A Body, B Body
Fitment:
1970 - 1972 Dodge Dart
1970 - 1972 Dodge Dart Custom
1970 - 1972 Dodge Dart Swinger
1970 - 1972 Plymouth Duster 340
1971 - 1974 Plymouth Barracuda
1970 - 1972 Plymouth Duster
1971 - 1972 Plymouth Valiant
1971 - 1972 Dodge Dart Demon
1971 - 1972 Dodge Dart Demon 340
1971 - 1971 Plymouth Barracuda Gran Coupe
1971 - 1972 Dodge Dart Special
Fitment Notes:
70-72 A,B Body SB 17 Inch x 22 Inch AT
