Cold Case Radiators 64-67 GTO w/AC HO/SD 1.25in Radiator AT
CCRGPG38ASK (1 in stock)Cold Case Radiators
Regular price
$665.99
Sale

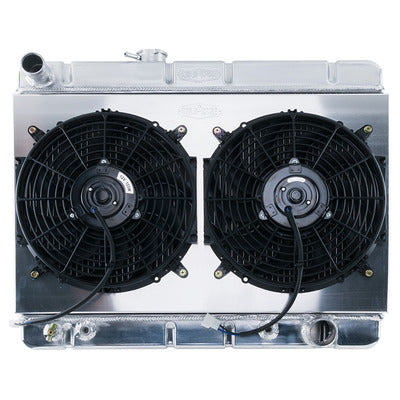

1964-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator. AT Cars with AC.
This is the taller 17.5 Inch core for cars with factory AC. This is our super duty model with 2 rows of 1.25 inch cooling tubes. This is the 66-67 version setup but will work in all 64-67 cars with an AC support. Comes complete with dual 12 Inch electric fans and aluminum shroud.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Rows
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto trans (auto-trans-cooler)
- Radiator and Fan - 25.125 in W x 21.875 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - With Air Conditioning - Aluminum - Natural - Automatic - GM A-Body 1966-67 - Kit
Radiator Specs:
- Core Height 17-1/2 Inch
- Core Width 25-1/8 Inch
- Overall Height 21-7/8 Inch
- Overall Thickness 6 Inch
- Upper Hose 1-1/2 Inch
- Lower Hose 1-13/16 Inch
- Tubes (2) 1.25 Inch Tubes
- Trans Lines 12-1/4 Inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GPG38ASK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
25-1/8 in
|
|
Overall Height
|
21-7/8 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
25-1/8 in
|
|
Core Height
|
17-1/2 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-13/16 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Pontiac
Fitment:
1964 - 1967 Pontiac GTO
1964 - 1967 Pontiac Tempest
1964 - 1967 Pontiac LeMans
Fitment Notes:
64-67 GTO, Tempest, LeMans
