Cold Case Radiators 64-67 GTO w/o AC HO/SD 1.25in Radiator A
CCRGPG34ASK (1 in stock)Cold Case Radiators
Regular price
$665.99
Sale
1964-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator. AT Cars w/o AC.

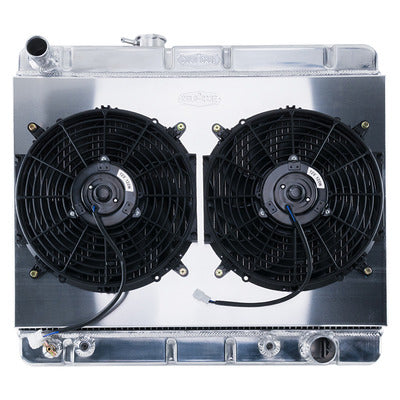

This is the smaller 15.5 Inch core for cars without factory AC. This is our super duty model with 2 rows of 1.25 inch cooling tubes. This is the 66-67 version setup but will work in all 64-67 cars with an non AC support. Comes complete with dual 12 Inch electric fans and aluminum shroud.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Rows
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto trans (auto-trans-cooler)
- Radiator and Fan - 25.25 in W x 20.125 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Without Air Conditioning - Aluminum - Natural - Automatic - GM A-Body 1966-67 - Kit
- MPN: GPG34ASK
Radiator Specs:
- Core 15-1/2 Inch
- Width 25-1/4 Inch
- Overall Height 20-1/8 Inch
- Overall Thickness 6 Inch
- Upper Hose 1-1/2 Inch
- Lower Hose 1-13/16 Inch
- Tubes (2) 1.25 Inch Tubes
- Trans Lines 12-1/4 Inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GPG34ASK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
25-1/4 in
|
|
Overall Height
|
20-1/8 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
25-1/4 in
|
|
Core Height
|
15-1/2 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-13/16 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Pontiac, Fitment:
Fitment:
1964 - 1967 Pontiac Tempest
1964 - 1967 Pontiac GTO
1964 - 1967 Pontiac LeMans
Fitment Notes:
64-67 GTO, Tempest, LeMans
