Cold Case Radiators 66-67 GTO Radiator w/o AC AT

Cold Case Radiators 66-67 GTO Radiator

CCRGPG34A (Not in stock)

Cold Case Radiators

Regular price $397.99 Sale

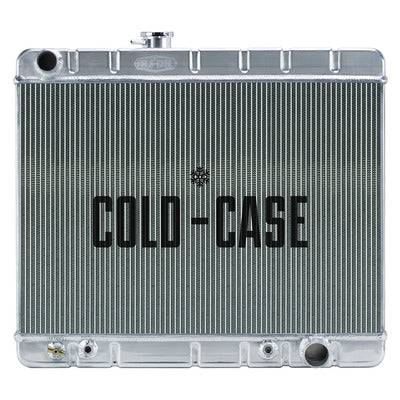

1966-1967 Pontiac GTO / Tempest / LeMans Aluminum Performance Radiator. For use with automatic transmissions and cars without A/C. This is the smaller 15.5 inch core for cars without factory AC. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For auto trans (auto-trans-cooler)
  • Direct fitment for 66-67 GTO
  • 25.25 in W x 20.125 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Without Air Conditioning - Aluminum - Natural - Automatic - GM A-Body 1966-67
  • MPN: GPG34A

Radiator Specs:

  • Core 15-1/2 inch
  • Width 25-1/4 inch
  • Overall Height 20-1/8 inch
  • Overall Thickness 3 inch
  • Upper Hose 1-1/2 inch
  • Lower Hose 1-13/16 inch
  • Tubes (2) 1 inch Tubes
  • Trans Lines 12-1/4 inch

Specifications

Brand Cold Case Radiators
Part Number GPG34A
Old Part Number RPE36L
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
25-1/4 in
Overall Height
20-1/8 in
Overall Depth
3 in
Core Width
25-1/4 in
Core Height
15-1/2 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1 13/16 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Automatic
Make: Pontiac

Fitment:
1966 - 1967 Pontiac GTO
1966 - 1967 Pontiac Tempest
1966 - 1967 Pontiac LeMans

Fitment Notes:
66-67 GTO w/o A/C
