Cold Case Radiators 66-67 GTO Radiator w/o AC MT
CCRGPG34 (1 in stock)Cold Case Radiators
Regular price
$387.22
Sale

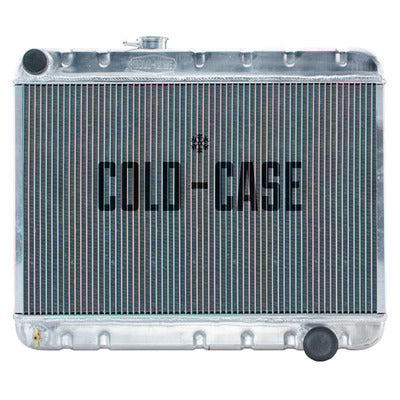

1966-1967 Pontiac GTO Tempest LeMans Aluminum Performance Radiator. MT Cars w/o AC. This is the smaller 15.5 inch core for cars without factory AC.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Manual
- Direct fitment for 66-67 GTO
- 25.25 in W x 20.125 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Without Air Conditioning - Aluminum - Natural - Manual - GM A-Body 1966-67
- MPN: GPG34
Radiator Specs:
- Core 15-1/2 inch
- Width 25-1/4 inch
- Overall Height 20-1/8 inch
- Overall Thickness 3 inch
- Upper Hose 1-1/2 inch
- Lower Hose 1-13/16 inch
- Tubes (2) 1 inch Tubes
- Trans Lines 12-1/4 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GPG34 |
| Old Part Number | RPE36L |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
25-1/4 in
|
|
Overall Height
|
20-1/8 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
25-1/4 in
|
|
Core Height
|
15-1/2 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1 13/16 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1 in
|
|
Fluid Cooler
|
No
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Each
|
Fitment
Vehicle Type: Car
Transmission Type: Manual
Make: Pontiac
Fitment:
1966 - 1967 Pontiac GTO
1966 - 1967 Pontiac Tempest
1966 - 1967 Pontiac LeMans
Fitment Notes: 66-67 GTO w/o AC and with Manual Transmission
