Cold Case Radiators 70-81 Firebird MT 12in Dual Fans
CCRGPF18K (1 in stock)Cold Case Radiators
Regular price
$624.22
Sale

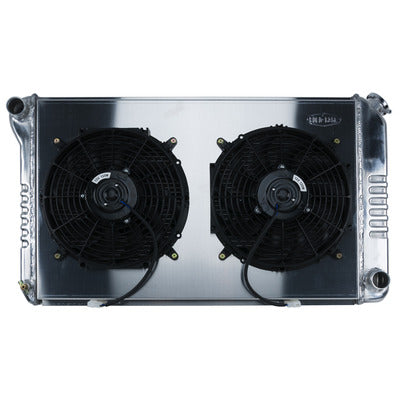

1970-1981 Pontiac Firebird Trans Am Aluminum Performance Radiator and 12 inch dual fan kit. Automatic transmission cars.
Since the original fan shroud holds the stock radiator in place, a custom mount will be needed for these kits. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as well as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual transmission
- Direct fitment for 70-81 Firebird Trans Am
- Radiator and Fan - 33.2 in W - 18.8 in H - 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Manual - GM F-Body 1970-81 - Kit
Radiator Specs:
- Core Height 18.4 inch
- Core Width 27.5 inch
- Overall Height 18.8 inch
- Overall Width 33.2 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.57 inch
- Lower Hose 1.57 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GPF18K |
| Old Part Number | RFE18LTFK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
33-13/64 in
|
|
Overall Height
|
18-51/64 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
27-1/2 in
|
|
Core Height
|
18-13/32 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-1/2 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
No
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Manual
Make: Pontiac
Cylinders: 8 Cylinder
Fitment:
1970 - 1981 Pontiac Firebird
1970 - 1981 Pontiac Trans Am
Fitment Notes:
70-81 Firebird MT Dual 12 Inch
