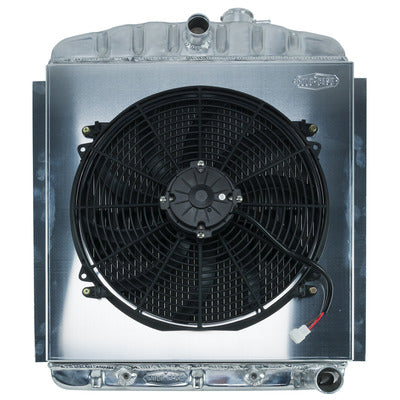

Cold Case Radiators 47-54 Chevy Truck Radiator and 16in Fan Kit
CCRGMT568AK (Not in stock)Cold Case Radiators
Regular price
$598.22
Sale
1947-1954 Chevrolet Pickup Truck Aluminum Performance Radiator and 16 inch fan kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as well as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto/manual trans
- Direct fitment for 47-54 Chevy Truck
- Radiator and Fan - 22.6 in W x 27 in H x 3 in D - Center Inlet - Passenger Side Outlet - Aluminum - Natural - Chevy Truck 1947-54 - Kit
- MPN: GMT568AK (old part number RPE568K)
Radiator Specs:
- Core Height 20.5 inch
- Core Width 19.2 inch
- Overall Height 27 inch To Cap
- Overall Width 22.6 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GMT568AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
22-19/32 in
|
|
Overall Height
|
27 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
19-13/64 in
|
|
Core Height
|
20-1/2 in
|
|
Inlet Side
|
Center
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-49/64 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
1
|
|
Fan Diameter
|
16 in
|
|
Fan CFM
|
2,500 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Truck/SUV
Transmission Type: Automatic, Manual
Make: Chevrolet
Cylinders: 8 Cylinder
Fitment:
1947 - 1954 Chevrolet Truck 3100
1947 - 1954 Chevrolet Truck 3600
1947 - 1954 Chevrolet Truck 3800
1947 - 1954 Chevrolet Truck
1948 - 1954 Chevrolet Truck 3700
1948 - 1954 Chevrolet Truck 3900
Fitment Notes: 47-54 Chevy Truck 16 Inch
