Cold Case Radiators 67-76 Chevy GMC Pickup Radiator and 12in Fan
CCRGMT558AK (3 in stock)Cold Case Radiators
Regular price
$632.99
Sale

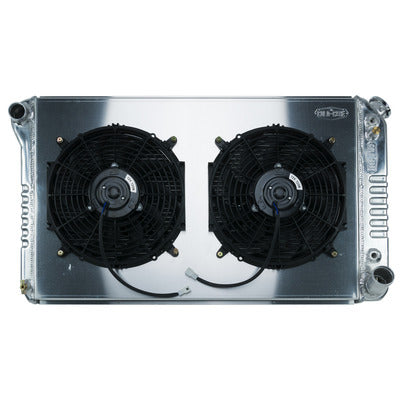

1967-1976 Chevy/GMC Truck Aluminum Performance Radiator and 12 Inch fan kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 67-72 GM Truck
- Radiator and Fan - 34 in W x 18.6 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM Fullsize Truck 1967-76 - Kit
Radiator Specs:
- Core Height 17.25 inch
- Core Width 28.35 inch
- Overall Height 18.6 inch
- Overall Width 34 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GMT558AK |
| Old Part Number | RPE558ATFK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
34 in
|
|
Overall Height
|
18-21/32 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
28-11/32 in
|
|
Core Height
|
17-1/4 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-49/64 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Truck/SUV
Transmission Type: Automatic
Make: Chevrolet, GMC
Cylinders: 8 Cylinder
Fitment:
1967 - 1974 GMC K25/K2500 Suburban
1967 - 1974 GMC C15/C1500 Suburban
1967 - 1974 GMC C25/C2500 Suburban
1967 - 1974 GMC K15/K1500 Suburban
1967 - 1967 GMC L3500
1967 - 1967 GMC LI3500
1967 - 1974 GMC K25/K2500 Pickup
1967 - 1974 GMC C15/C1500 Pickup
1967 - 1974 GMC C25/C2500 Pickup
1967 - 1974 GMC C35/C3500 Pickup
1967 - 1974 GMC K15/K1500 Pickup
1968 - 1974 GMC K35/K3500 Pickup
1970 - 1976 GMC Jimmy
1971 - 1976 GMC Sprint
1972 - 1974 GMC Sprint Custom
1973 - 1974 GMC Transmode
1975 - 1976 GMC C25 Sierra Classic
1975 - 1976 GMC C25 Suburban Sierra Classic
1975 - 1976 GMC C35 Sierra Classic
1975 - 1976 GMC Jimmy Sierra Classic
1975 - 1976 GMC K15 Sierra Classic
1975 - 1976 GMC K15 Suburban Sierra Classic
1975 - 1976 GMC K25 Sierra Classic
1975 - 1976 GMC K25 Suburban Sierra Classic
1975 - 1976 GMC Jimmy Sierra Grande
1975 - 1976 GMC K25 Suburban Sierra Grande
1975 - 1976 GMC K25 Sierra Grande
1975 - 1976 GMC K15 Suburban Sierra Grande
1975 - 1976 GMC C15 Sierra Grande
1975 - 1976 GMC C25 Sierra Grande
1975 - 1976 GMC C15 Suburban Sierra Grande
1975 - 1976 GMC K15 Sierra Grande
1975 - 1976 GMC C15 Sierra Classic
1975 - 1976 GMC C35 Sierra Grande
1975 - 1976 GMC C25 Suburban Sierra Grande
1975 - 1976 GMC C15 Suburban Sierra Classic
1975 - 1976 GMC K15 Suburban High Sierra
1975 - 1976 GMC C15 High Sierra
1975 - 1976 GMC C15 Suburban High Sierra
1975 - 1976 GMC K25
1975 - 1976 GMC K25 Suburban
1975 - 1976 GMC C15
1975 - 1976 GMC C15 Suburban
1975 - 1976 GMC C25
1975 - 1976 GMC C25 Suburban
1975 - 1976 GMC C35
1975 - 1976 GMC K15
1975 - 1976 GMC K15 Suburban
1975 - 1976 GMC Sprint Classic
1975 - 1975 GMC Sprint High Sierra
1975 - 1976 GMC K25 Suburban High Sierra
1975 - 1976 GMC K25 High Sierra
1975 - 1976 GMC K15 High Sierra
1975 - 1976 GMC Jimmy High Sierra
1975 - 1976 GMC C35 High Sierra
1975 - 1976 GMC C25 Suburban High Sierra
1975 - 1976 GMC C25 High Sierra
1975 - 1976 GMC Sprint SP
1976 - 1976 GMC Sprint Sierra Madre Del Sur
1967 - 1976 Chevrolet C10
1967 - 1976 Chevrolet C10 Pickup
1967 - 1976 Chevrolet K10
1967 - 1976 Chevrolet K10 Pickup
1967 - 1976 Chevrolet Truck
Fitment Notes:
67-76 GM Truck Pickup AT Dual 12 Inch
