Cold Case Radiators 63-66 Chevy/GMC Pickup Radiator and 16in Fan
CCRGMT555AK (1 in stock)Cold Case Radiators
Regular price
$598.22
Sale

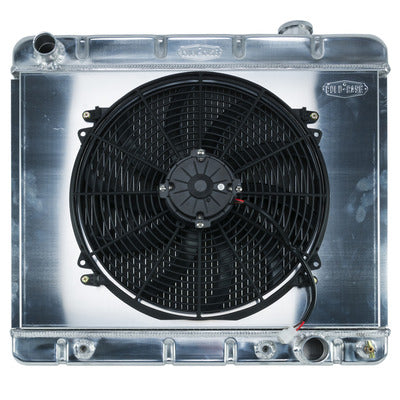

1963-1966 Chevy/GMC Pickup Truck Aluminum Performance Radiator and 16 inch fan kit. For trucks with original 3 core mounts. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic trans
- Direct fitment for 63-66 GM Truck
- Radiator and Fan - 24.5 in W x 22.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM Fullsize Truck 1963-66 - Kit
Radiator Specs:
- Core Height 17.4 inch
- Core Width 22.75 inch
- Overall Height 22.5 inch
- Overall Width 24.5 inch
- Overall Thickness 6 inch
- Upper Hose
- Lower Hose
- Tubes (2) 1.25 inch Tubes
Specifications
| Brand | Cold Case Radiators |
| Part Number | GMT555AK |
| Old Part Number | RPE55AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
24-1/2 in
|
|
Overall Height
|
22-1/2 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
22-3/4 in
|
|
Core Height
|
17-13/32 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-3/4 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
1
|
|
Fan Diameter
|
16 in
|
|
Fan CFM
|
2,500 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Truck/SUV
Transmission Type: Automatic
Make: Chevrolet, GMC
Fitment:
1963 - 1966 Chevrolet C10 Pickup
1963 - 1966 Chevrolet C20 Pickup
1963 - 1966 Chevrolet K10 Pickup
1963 - 1966 Chevrolet K20 Pickup
1963 - 1966 Chevrolet Truck
1963 - 1966 GMC Truck
1963 - 1966 Chevrolet C10
1963 - 1966 GMC C10
Fitment Notes:
63-66 GM Truck Pickup Automatic Transmission
