Cold Case Radiators 63-66 Chevy/GMC Pickup Radiator AT

Cold Case Radiators 63-66 Chevy/GMC Pickup Radiator AT

CCRGMT555A (Not in stock)

Cold Case Radiators

Regular price $397.95 Sale

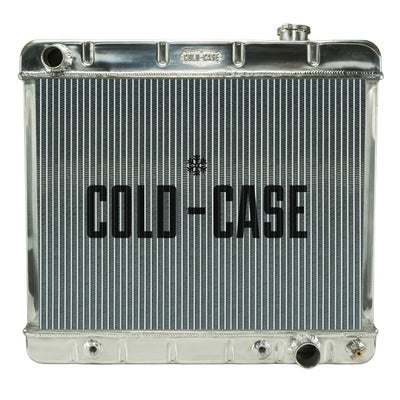

1963-1966 Chevy/GMC Pickup Truck Aluminum Performance Radiator. For trucks with original 3 core mounts. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic trans
  • Direct fitment for 63-66 GM Truck
  • Radiator - 24.5 in W x 22.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM Fullsize Truck 1963-66

Radiator Specs:

  • Core Height 17.4 inch
  • Core Width 22.75 inch
  • Overall Height 22.5 inch
  • Overall Width 24.5 inch
  • Overall Thickness 3 inch
  • Upper Hose
  • Lower Hose
  • Tubes (2) 1.25 inch Tubes

Specifications

Brand Cold Case Radiators
Part Number GMT555A
Old Part Number RPE55A
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
24-1/2 in
Overall Height
22-1/2 in
Overall Depth
3 in
Core Width
22-3/4 in
Core Height
17-13/32 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-3/4 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Fan Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Truck/SUV
Transmission Type: Automatic
Make: Chevrolet, GMC

Fitment:
1963 - 1966 Chevrolet C10 Pickup
1963 - 1966 Chevrolet C20 Pickup
1963 - 1966 Chevrolet K10 Pickup
1963 - 1966 Chevrolet K20 Pickup
1963 - 1966 Chevrolet Truck
1963 - 1966 GMC Truck
1963 - 1966 Chevrolet C10
1963 - 1966 GMC C10

Fitment Notes:
63-66 GM Truck Pickup AT
