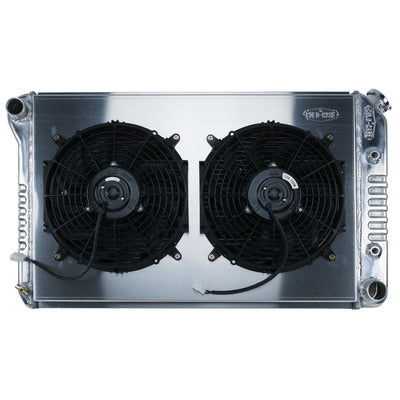

Cold Case Radiators 78-88 GM G-Body Radiator and 12in Dual Fan Kit AT
CCRGMG544AK (Not in stock)Cold Case Radiators
Regular price
$632.22
Sale
1978-1988 GM G-Body except Grand National Aluminum Performance Radiator and 12 Inch dual fan kit excluding Grand National. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual and auto trans
- Direct fitment for 78-88 G-Body
- Radiator and Fan - 31.5 in W x 18.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - GM G-Body 1978-88 - Kit
Radiator Specs:
- Core Height 18.5 inch
- Core Width 26.5 inch
- Overall Height 18.5 inch
- Overall Width 31.5 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GMG544AK |
| Old Part Number | RPE544ATFK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
31-1/2 in
|
|
Overall Height
|
18-1/2 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
26-1/2 in
|
|
Core Height
|
18-1/2 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-49/64 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
- Vehicle Type: Car
- Transmission Type: Automatic
- Make: Buick, Chevrolet, GMC, Oldsmobile and Pontiac
- Cylinders: 6 Cylinder
Fitment:
- 1978 - 1987 Pontiac Grand Prix
- 1978 - 1983 Pontiac Grand Prix LJ
- 1978 - 1980 Pontiac Grand Prix SJ
- 1981 - 1987 Pontiac Grand Prix Brougham
- 1982 - 1986 Chevrolet El Camino Conquista
- 1982 - 1983 Buick Regal Estate Wagon
- 1982 - 1987 GMC Caballero Diablo
- 1982 - 1982 Buick Regal Sport
- 1982 - 1983 Chevrolet Malibu Classic
- 1982 - 1987 Chevrolet El Camino SS
- 1982 - 1987 Oldsmobile Cutlass Supreme Brougham
- 1982 - 1986 Pontiac Bonneville Brougham
- 1982 - 1982 Buick Regal Limited Turbo
- 1982 - 1987 Buick Regal Limited
- 1982 - 1987 Pontiac Bonneville
- 1982 - 1988 Oldsmobile Cutlass Supreme
- 1982 - 1983 Oldsmobile Cutlass Cruiser
- 1982 - 1987 Buick Regal
- 1982 - 1987 GMC Caballero
- 1982 - 1988 Chevrolet Monte Carlo
- 1982 - 1987 Chevrolet El Camino
- 1982 - 1986 GMC Caballero Amarillo
- 1983 - 1988 Chevrolet Monte Carlo SS
- 1983 - 1986 Buick Regal T-Type
- 1983 - 1983 Chevrolet Monte Carlo CL
- 1984 - 1987 Pontiac Grand Prix LE
- 1984 - 1987 Pontiac Bonneville LE
- 1984 - 1987 Buick Regal Grand National
- 1985 - 1985 Oldsmobile Cutlass Supreme LS
- 1986 - 1988 Chevrolet Monte Carlo LS
- 1986 - 1987 Oldsmobile Cutlass Salon
- 1986 - 1986 Oldsmobile Cutlass Salon 442
- 1987 - 1987 Buick Regal GNX
- 1987 - 1987 Oldsmobile Cutlass Supreme 442
- 1988 - 1988 Oldsmobile Cutlass Supreme Indy 500 Pace Car
- 1988 - 1988 Oldsmobile Cutlass Supreme International
- 1988 - 1988 Oldsmobile Cutlass Supreme Classic Brougham
- 1988 - 1988 Oldsmobile Cutlass Supreme SL
- 1988 - 1988 Oldsmobile Cutlass Supreme Classic
Fitment Notes:
78-88 GM G-Body AT Dual 12 Inch
