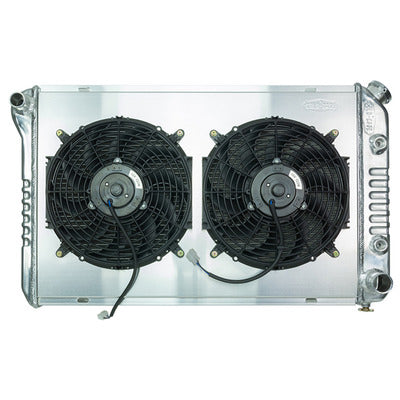

Cold Case Radiators 84-87 Buick Regal Grand National Radiator
CCRGMB57AK (1 in stock)Cold Case Radiators
Regular price
$779.22
Sale
These Cold-Case radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a Cold-Case.
Note: This radiator has the correct oil and trans fittings used on the 86-87 models, unlike other reproductions on the market. You will need to modify part of the radiator support in order for this radiator to fit.
Fits:
- 1984-1987 Buick Regal Grand National
Details:
- Dual 12 Inch Fans
- 100 percent TIG welded
- (2) 1.25 Inch Tubes
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Auto Trans
- Limited Lifetime Warranty
- Radiator and Fan - 32 in W x 18.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM G-Body 1984-87 - Kit
Radiator Specs:
- Core Height: 16.75 inch
- Core Width: 26 inch
- Overall Height: 18.5 inch
- Overall Width: 32 inch
- Overall Thickness: 6 inch
- Tubes: (2) 1.25 inch
- Upper Hose: 1.25 inch
- Lower Hose: 1.50 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | GMB57AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
32 in
|
|
Overall Height
|
18-1/2 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
26 in
|
|
Core Height
|
16-3/4 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/4 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-1/2 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Make: Buick
Fitment:
1984 - 1987 Buick Regal
1984 - 1987 Buick Regal Grand National
1984 - 1987 Buick Regal Limited
1984 - 1986 Buick Regal T-Type
1987 - 1987 Buick Regal GNX
