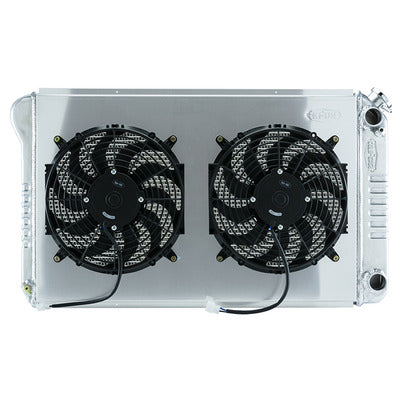

Cold Case Radiators 68-72 A-Body LS Swap Radiator and Dual 12in Fan
Cold Case Radiators 68-72 A-Body LS Swap Radiator and Dual 12in Fan
SKU:CCRGMA546AK
Inventory: 1 in stock
Couldn't load pickup availability
1968-1972 GM A-Body with LS Swap Aluminum Performance Dual Flow Radiator and 12 Inch fan kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Dual Flow Design
- Direct fitment for 68-72 A-Body LS Swaps
- Radiator and Fan - 34.21 in W x 18.82 in H x 3 in D - Passenger Side Inlet - Passenger Side Outlet - Aluminum - Natural - GM LS-Series - GM A-Body 1968-1977 - Kit
Radiator Specs:
- Core Height 18.4 inch
- Core Width 28.5 inch
- Overall Height 18.82 inch
- Overall Width 34.21 inch
- Overall Thickness 6 inch
- Upper Hose 1.25 inch
- Lower Hose 1.5 inch
- Tubes (2) 1.25 inch Tubes
| Brand | Cold Case Radiators |
| Part Number | GMA546AK |
| Old Part Number | RPE546AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
34-13/64 in
|
|
Overall Height
|
18-53/64 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
28-1/2 in
|
|
Core Height
|
18-13/32 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/4 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-1/2 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Vehicle Type: Car
Make: Buick, Chevrolet, Oldsmobile, Pontiac
Engine: A Body LS Swap
Fitment:
1968 - 1968 Chevrolet Chevelle 300
1968 - 1972 Chevrolet Chevelle Nomad
1968 - 1968 Oldsmobile Cutlass S
1968 - 1969 Pontiac Tempest Safari
1968 - 1969 Pontiac Tempest Custom
1968 - 1972 Buick Skylark Custom
1968 - 1969 Chevrolet Chevelle 300 Deluxe
1968 - 1972 Chevrolet Chevelle Concours
1968 - 1972 Pontiac GTO
1968 - 1971 Oldsmobile 442
1968 - 1968 Chevrolet Chevelle
1968 - 1972 Buick Skylark
1968 - 1972 Pontiac Grand Prix
1968 - 1972 Oldsmobile Cutlass
1968 - 1970 Pontiac Tempest
1968 - 1972 Pontiac LeMans
1968 - 1972 Chevrolet Chevelle SS
1968 - 1972 Chevrolet Chevelle Malibu
1969 - 1970 Pontiac LeMans Safari
1969 - 1972 Chevrolet Chevelle Concours Estate
1969 - 1972 Chevrolet Chevelle Greenbrier
1970 - 1972 Pontiac LeMans Sport
1970 - 1971 Pontiac GTO The Judge
1970 - 1970 Pontiac Tempest GT
1970 - 1972 Chevrolet Chevelle
1970 - 1970 Buick Skylark 350
1971 - 1972 Oldsmobile Cutlass S
1971 - 1971 Pontiac LeMans T37
1972 - 1972 Pontiac LeMans Luxury
1972 - 1972 Buick Skylark 350
1972 - 1972 Oldsmobile Cutlass Cruiser
1973 - 1977 Chevrolet Chevelle
1968 - 1977 Chevrolet El Camino
1970 - 1977 Chevrolet Monte Carlo
Fitment Notes:
68-72 A-Body LS Swap
