Cold Case Radiators 67-70 Mustang BB 24in Radiator and 16 Fan Kit AT
CCRFOM588AK (1 in stock)Cold Case Radiators
Regular price
$631.22
Sale

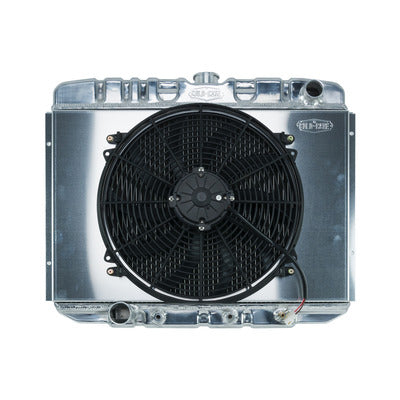

67-70 Mustang BB 24 Inch Aluminum Performance Radiator and 16 Fan Kit AT Cars. This is the radiator with RH inlet and LH outlet for Big Blocks.
Owners with 20 inch radiators wanting to upgrade radiator performance can use this 24 inch model by purchasing and installing a pair of lower radiator brackets, rubber insulators and an upper radiator bracket and rubber insulator from your favorite Mustang restoration supplier. Also, you should remove the support shields found on the LH and RH of the support. This will increase the opening in the support to take advantage of the larger radiator.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Automatic trans
- Direct fitment for 67-70 Mustang
- Radiator and Fan - 25 in W x 21.25 in H x 3 in D - Passenger Side Inlet - Driver Side Outlet - Aluminum - Natural - Automatic - Big Block Ford - Ford Mustang 1967-70 - Kit
Radiator Specs:
- Core Height 17.5 inch
- Core Width 24 inch
- Overall Height 21.25 inch
- Overall Width 25 inch
- Overall Thickness 6 inch
- Upper Hose 1.5 inch
- Lower Hose 1.75 inch
- Tubes (2) 1 inch Tubes
Specifications
| Brand | Cold Case Radiators |
| Part Number | FOM588AK |
| Old Part Number | RPE588AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
25 in
|
|
Overall Height
|
21-1/4 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
24 in
|
|
Core Height
|
17-1/2 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Driver Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-3/4 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
1
|
|
Fan Diameter
|
16 in
|
|
Fan CFM
|
2,500 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Ford, Mercury
Engine: Ford Big Block
Cylinders: 8 Cylinder
Fitment:
1967 - 1970 Ford Mustang
1967 - 1970 Ford Mustang Shelby GT-350
1967 - 1970 Ford Mustang Shelby GT-500
1968 - 1968 Ford Mustang Shelby GT-500KR
1969 - 1970 Ford Mustang Boss 302
1969 - 1970 Ford Mustang Boss 429
1970 - 1970 Ford Mustang Grande
1970 - 1970 Ford Mustang Mach I
1967 - 1970 Mercury Cougar
Fitment Notes:
67-70 Mustang 24 Inch BB AT 16 Inch
