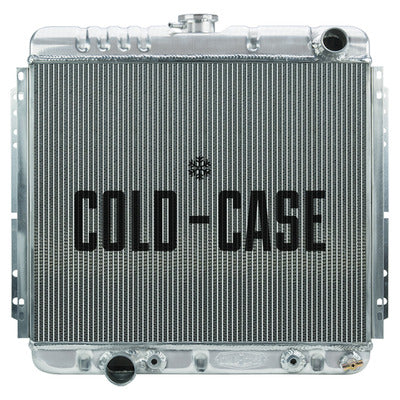

Cold Case Radiators 67-70 Mustang 20in Radiator AT

Cold Case Radiators 67-70 Mustang 20in Radiator AT

CCRFOM560A (1 in stock)

Cold Case Radiators

Regular price $362.99 Sale

1967-1970 Ford Mustang 390/428 Big Block Aluminum Performance Radiator. AT Cars. 67-68 LH outlets, 69-70 302 w/o AC. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic trans
  • Direct fitment for 67-70 Mustang 390/428
  • 21.06 in W x 20.5 in H x 3 in D - Passenger Side Inlet - Driver Side Outlet - Aluminum - Natural - Automatic - Big Block Ford - Ford Mustang 1967-70

Radiator Specs:

  • Core Height 16.5 inch
  • Core Width 19.6 inch
  • Overall Height 20.5
  • Overall Width 21.06 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.77 inch

Specifications

Brand Cold Case Radiators
Part Number FOM560A
Old Part Number REP560ATF
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
21 in
Overall Height
20-1/2 in
Overall Depth
3 in
Core Width
19-39/64 in
Core Height
16-1/2 in
Inlet Side
Passenger Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Driver Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Automatic
Make: Ford, Mercury

Fitment:
1960 - 1960 Ford Galaxie Special
1960 - 1963 Ford Galaxie
1961 - 1961 Ford Galaxie Club Victoria
1961 - 1961 Ford Galaxie Town Victoria
1961 - 1961 Ford Galaxie Sunliner
1961 - 1961 Ford Galaxie Starliner
1962 - 1969 Ford Fairlane
1965 - 1969 Ford Fairlane 500
1966 - 1967 Ford Fairlane 500XL
1967 - 1969 Ford Mustang Shelby GT-350
1967 - 1969 Ford Mustang Shelby GT-500
1967 - 1969 Ford Mustang
1968 - 1968 Ford Mustang Shelby GT-500KR
1969 - 1969 Ford Mustang Boss 429
1969 - 1969 Ford Mustang Boss 302
1970 - 1970 Mercury Cougar Boss 302
1970 - 1970 Mercury Cougar Boss 429
1970 - 1970 Mercury Cougar Cobra Jet
1970 - 1973 Ford Maverick
1970 - 1970 Mercury Cougar
1970 - 1970 Mercury Cougar XR-7

Fitment Notes:
67-69 Mustang 390/428 Cougar-Mav 20 Inch AT
