Cold Case Radiators 66-67 Fairlane BB AT Radiator

Cold Case Radiators 66-67 Fairlane BB AT Radiator

CCRFOF585A (2 in stock)

Cold Case Radiators

Regular price $397.99 Sale

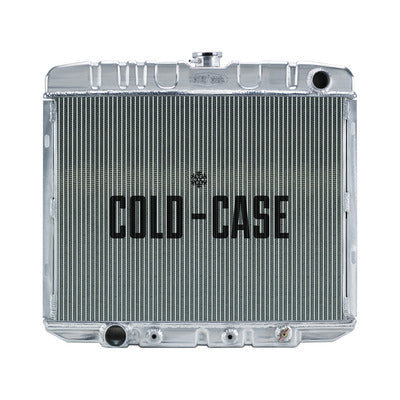

1966-1967 Ford Fairlane Big Block Aluminum Performance Radiator. AT Cars. This radiator is actually correct for only the 1967. 1966 owners must obtain a 67 top bracket for proper fitment.

Also, the lower rubber insulators may need some trimming for proper fitment. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For automatic trans
  • 25.5 in W x 21.5 in H x 3 in D - Passenger Side Inlet - Driver Side Outlet - Aluminum - Natural - Big Block Ford - Ford Fairlane 1966-67
  • Direct fitment for 66-67 Fairlane w/ Big Block
  • MPN: FOF585A

Radiator Specs:

  • Core Height 16 inch
  • Core Width 24 inch
  • Overall Height 21.5 inch
  • Overall Width 25.5 inch
  • Overall Thickness 3 inch
  • Upper Hose 1.5 inch
  • Lower Hose 1.75 inch
  • Tubes (2) 1 inch Tubes

Specifications

Brand Cold Case Radiators
Part Number FOF585A
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
25-1/2 in
Overall Height
21-1/2 in
Overall Depth
3 in
Core Width
22-3/4 in
Core Height
17-1/4 in
Inlet Side
Passenger Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Driver Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-3/4 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Make: Ford, Mercury
Engine: Ford Big Block

Fitment:
1966 - 1967 Ford Fairlane
1966 - 1967 Mercury Comet
1967 - 1967 Ford Ranchero
