Cold Case Radiators 63-68 Corvette SB Radiator

Cold Case Radiators 63-68 Corvette SB Radiator

CCRCHV712A (Not in stock)

Cold Case Radiators

Regular price $395.99 Sale

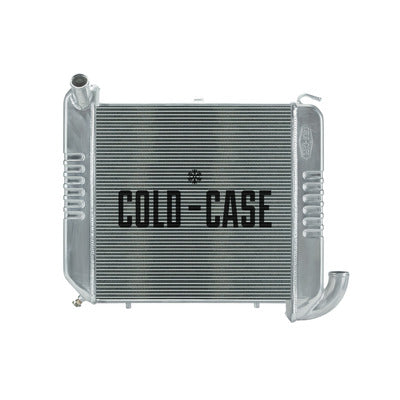

1965-1968 Chevy Corvette Small Block Aluminum Performance Radiator. AT/MT Cars.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For auto/manual trans
  • Direct fitment for 63-68 Corvette w/ Small Block
  • Radiator - 24.5 in W x 18 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Small Block Chevy - Chevy Corvette 1963-68

Radiator Specs:

  • Core Height 16.5 Inch
  • Core Width 17.3 Inch
  • Overall Height 18 Inch
  • Overall Width 24.5 Inch
  • Overall Thickness 3 Inch
  • Upper Hose 1.5 Inch
  • Lower Hose 1.75 Inch
  • Tubes (2) 1 Inch Tubes

Specifications

Brand Cold Case Radiators
Part Number CHV712A
Old Part Number RPE712
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
24-1/2 in
Overall Height
18 in
Overall Depth
3 in
Core Width
17-19/64 in
Core Height
16-1/2 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-3/4 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Crossflow
Cap Included
No
No Filler
Yes
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Automatic; Manual
Make: Chevrolet

Fitment:
1965 - 1968 Chevrolet Corvette

Fitment Notes: 63-68 Corvette
