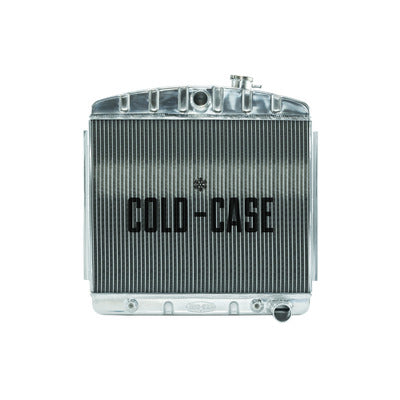

Cold Case Radiators 55-56 Tri-5 Chevy Radiator 6 Cyl (Front Mount)

Cold Case Radiators 55-56 Tri-5 Chevy Radiator 6 Cyl (Front Mount)

CCRCHT563A (2 in stock)

Cold Case Radiators

Regular price $397.95 Sale

1955-1956 Chevrolet Tr-Five Aluminum Performance Radiator. Straight 6 position cars for mount In Front of radiator support. Direct fit for 55-56 cars. 57 owners must use RPE563-7 for proper hood clearance. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual/auto trans
  • Direct fitment for 55-56 Chevy (Straight 6 position mount)
  • Radiator - 23.5 in W x 23.5 in H x 3 in D - Center Inlet - Passenger Side Outlet - Aluminum - Natural - Chevy V6 - Chevy Fullsize Car 1955-57
  • MPN: CHT563A (old part number RPE563)

Radiator Specs:

  • Core Height 17 inch
  • Core Width 21.5 inch
  • Overall Height 23.5 To Cap
  • Overall Width 23.5 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch

Specifications

Brand
Cold Case Radiators
Part Number
CHT563A
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
23-1/2 in
Overall Height
23-1/2 in
Overall Depth
3 in
Core Width
21-1/2 in
Core Height
17 in
Inlet Side
Center
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Fan Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each



Fitment

Vehicle Type: Car
Transmission Type: Automatic, Manual
Make: Chevrolet
Cylinders: 6 Cylinder

Fitment:
1955 - 1956 Chevrolet Bel Air
1955 - 1956 Chevrolet Nomad
1955 - 1956 Chevrolet Bel Air Beauville
1955 - 1956 Chevrolet Bel Air Nomad

Fitment Notes:
55-56 Chevy Front 6 Cyl Mount
