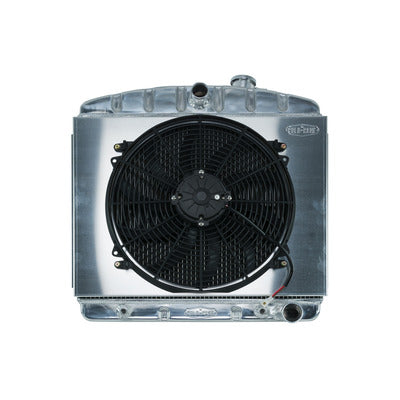

Cold Case Radiators 55-57 Tri-5 Chevy Radiator and 16in Fan Kit
CCRCHT562AK (Not in stock)Cold Case Radiators
Regular price
$597.22
Sale
55-57 Tri-5 Chevy Aluminum Radiator and 16 Inch Fan Kit (V8 Mount). V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For manual/auto trans
- Direct fitment for 55-57 Chevy (V8 position mount)
- Radiator and Fan - 23.5 in W x 23.5 in H x 3 in D - Center Inlet - Passenger Side Outlet - Aluminum - Natural - Chevy V8 - Chevy Fullsize Car 1955-57 - Kit
- MPN: CHT562AK (old part number RPE562K)
Radiator Specs:
- Core Height 17 inch
- Core Width 22 inch
- Overall Height 23.5 To Cap
- Overall Width 23.5 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | CHT562AK |
| Old Part Number | RPE562K |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
23-1/2 in
|
|
Overall Height
|
23-1/2 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
22 in
|
|
Core Height
|
17 in
|
|
Inlet Side
|
Center
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-49/64 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
1
|
|
Fan Diameter
|
16 in
|
|
Fan CFM
|
2,500 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Make: Chevrolet
Cylinders: 8 Cylinder
Fitment:
1955 - 1957 Chevrolet Bel Air
1955 - 1957 Chevrolet Nomad
1955 - 1956 Chevrolet Bel Air Beauville
1955 - 1957 Chevrolet Bel Air Nomad
Fitment Notes:
55-57 Chevy V8 mount 16 Inch
