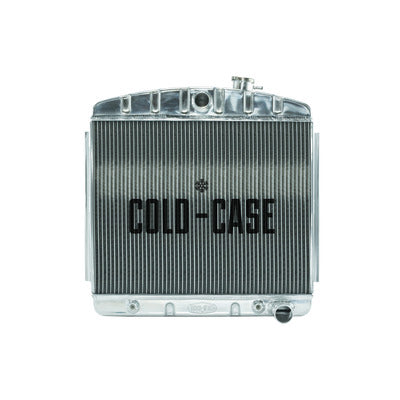

Cold Case Radiators 55-57 Tri-5 Chevy Radiator (V8 Mount)

Cold Case Radiators 55-57 Tri-5 Chevy Radiator (V8 Mount)

CCRCHT562A (Not in stock)

Cold Case Radiators

Regular price $396.99 Sale

1955-1957 Chevrolet Tri-Five Aluminum Performance Radiator. V8 Position cars for mount Behind radiator support. There is not enough space to put a clutch fan on the front of a SB and still mount the radiator in the V8 position. There is a 6 blade stationary and 7 blade flex fan you can use though.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual/auto trans
  • Direct fitment for 55-57 Chevy (V8 position mount)
  • Radiator - 23.5 in W x 23.5 in H x 3 in D - Center Inlet - Passenger Side Outlet - Aluminum - Natural - Chevy V8 - Chevy Fullsize Car 1955-57

Radiator Specs:

  • Core Height 17 inch
  • Core Width 22 inch
  • Overall Height 23.5 To Cap
  • Overall Width 23.5 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25"" Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch

Specifications

Brand Cold Case Radiators
Part Number CHT562A
Old Part Number RPE562
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
23-1/2 in
Overall Height
23-1/2 in
Overall Depth
3 in
Core Width
22 in
Core Height
17 in
Inlet Side
Center
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Fan Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Make: Chevrolet
Cylinders: V8

Fitment:
1955 - 1957 Chevrolet Bel Air
1955 - 1957 Chevrolet Nomad
1955 - 1956 Chevrolet Bel Air Beauville
1955 - 1957 Chevrolet Bel Air Nomad

Fitment Notes:
55-57 Chevy V8 mount
