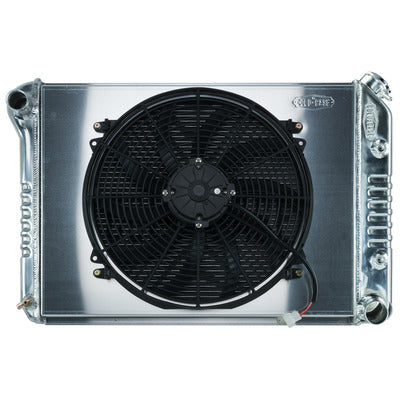

Cold Case BB Radiator and 16in Fan Kit for 68-79 Nova BB
CCRCHN548AK (Not in stock)Cold Case Radiators
Regular price
$596.99
Sale
68-79 Nova BB Aluminum Performance Radiator and 16 Inch Fan Kit AT Transmission. Big Block version. Comes without brackets. For bracket version, see part number CHC11AK.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic transmission
- Direct fitment for 68-79 Nova w/ Big Block
- Radiator and Fan - 28.35 in W x 19 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM X-Body 1968-79 - Kit
Radiator Specs:
- Core Height 16.85 inch
- Core Width 23 inch
- Overall Height 19 inch
- Overall Width 28.35 inch
- Overall Thickness 3 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.77 inch
Specifications
Brand | Cold Case Radiators |
Part Number | CHN548AK |
Old Part Number | RPE548ATFK |
Application Specific
|
Yes
|
Pass
|
Single
|
Row Number
|
2
|
Overall Width
|
28-11/32 in
|
Overall Height
|
19 in
|
Overall Depth
|
3 in
|
Core Width
|
23 in
|
Core Height
|
16-27/32 in
|
Inlet Side
|
Driver Side
|
Inlet Upper/Lower
|
Upper
|
Inlet Size
|
1-1/2 in
|
Inlet Style
|
Hose Barb
|
Inlet Quantity
|
1
|
Outlet Side
|
Passenger Side
|
Outlet Upper/Lower/Middle
|
Lower
|
Outlet Size
|
1-49/64 in
|
Outlet Style
|
Hose Barb
|
Outlet Quantity
|
1
|
Tube Size
|
1-1/4 in
|
Fluid Cooler
|
Yes
|
Flow Direction
|
Crossflow
|
Cap Included
|
No
|
Fan Included
|
Yes
|
Fan Quantity
|
1
|
Fan Diameter
|
16 in
|
Fan CFM
|
2,500 cfm
|
Blade Material
|
Plastic
|
Blade Color
|
Black
|
Shroud Material
|
Aluminum
|
Shroud Color
|
Natural
|
Material
|
Aluminum
|
Color
|
Polished
|
Finish
|
Polished
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Chevrolet
Engine: Chevy Big Block
Cylinders: 8 Cylinder
Fitment:
1969 - 1979 Chevrolet Nova
1973 - 1975 Chevrolet Nova Custom
1975 - 1975 Chevrolet Nova LN
1975 - 1978 Chevrolet Nova Police
1976 - 1977 Chevrolet Nova Concours
1976 - 1976 Chevrolet Nova SS
1977 - 1979 Chevrolet Nova Rally
1978 - 1979 Chevrolet Nova Custom
Fitment Notes:
68-79 Nova Big Block AT 16 Inch
