Cold Case Radiators 62-67 Chevy Nova Radiator MT

Cold Case Radiators 62-67 Chevy Nova Radiator MT

CCRCHN540 (Not in stock)

Cold Case Radiators

Regular price $387.95 Sale

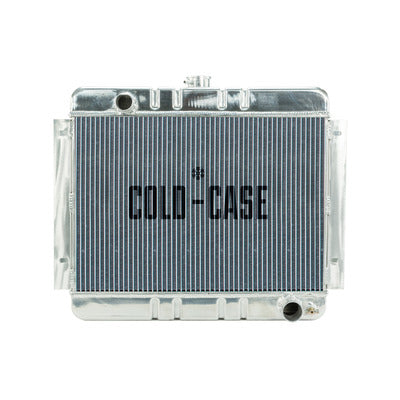

1962-1967 Chevrolet Nova Aluminum Performance Radiator. MT Transmission. Will also fit Inline 6 applications with flat fronted fan. Very limited clearance if using our fan/shroud combo. Will have to push motor back and use short water pump. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual/standard trans
  • Direct fitment for 62-67 Nova
  • Radiator - 22.35 in W x 20.7 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Manual - GM X-Body 1962-67

Radiator Specs:

  • Core Height 15.35 inch
  • Core Width 22.35 inch
  • Overall Height 20.7 inch
  • Overall Width 22.35 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.77 inch

Specifications

Brand
Cold Case Radiators
Part Number
CHN540
Old Part Number
RPE540
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
22-11/32 in
Overall Height
20-45/64 in
Overall Depth
3 in
Core Width
22-11/32 in
Core Height
15-11/32 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
No
Flow Direction
Crossflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Manual
Make: Chevrolet

Fitment:
1962 - 1967 Chevrolet Chevy II
1962 - 1967 Chevrolet Chevy II Nova
1964 - 1967 Chevrolet Chevy II Nova SS
1962 - 1967 Chevrolet Nova

Fitment Notes:
62-67 Nova MT
