Cold Case Radiators 66-68 Impala Radiator Stamped

Cold Case Radiators 66-68 Impala Radiator Stamped

CCRCHI566A (2 in stock)

Cold Case Radiators

Regular price $382.99 Sale

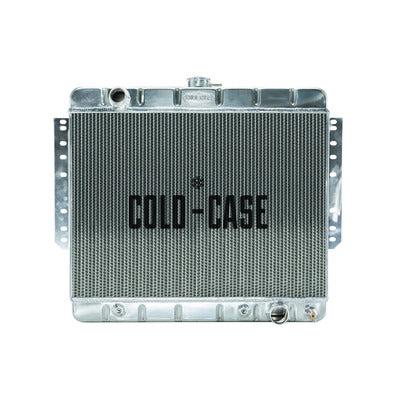

1966-1967 Chevy Impala Aluminum Performance Radiator. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For auto/manual trans
  • Direct fitment for 66-67 Impala
  • 28.75 in W x 23.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - GM B-Body 1966-68

Radiator Specs:

  • Core Height 17.5 inch
  • Core Width 25.1 inch
  • Overall Height 23.5 inch
  • Overall Width 28.75 inch
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.50 inch
  • Lower Hose 1.77 inch

Will fit in a 1961-1965 impala as well. Water neck and upper hose needs to be swapped for a 66-68 style to fit. This option is a good one for those looking for maximum cooling as upper LH and lower RH inlet/outlet is much more efficient than upper and lower being on the same side.

Specifications

Brand Cold Case Radiators
Part Number CHI566A
Old Part Number RPE566
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
28-3/4 in
Overall Height
23-1/2 in
Overall Depth
3 in
Core Width
25-7/64 in
Core Height
17-1/2 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Automatic, Manual
Make: Chevrolet

Fitment:
1966 - 1968 Chevrolet Impala
1966 - 1968 Chevrolet Impala SS
1966 - 1968 Chevrolet Caprice

Fitment Notes: 66-67 Impala
