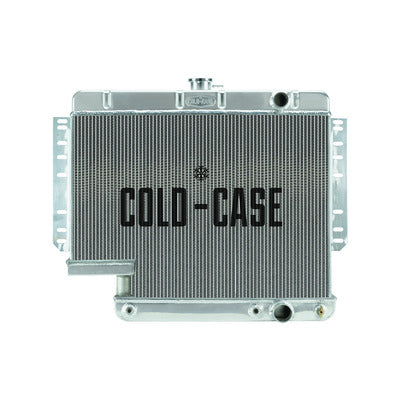

Cold Case Radiators 61-65 Impala with 500 Steering Box Radiator

Cold Case Radiators 61-65 Impala with 500 Steering Box Radiator

CCRCHI565A-5 (2 in stock)

Cold Case Radiators

Regular price $382.99 Sale

1961-1965 Chevy Impala Aluminum Performance Radiator. For cars with a 500 steering box. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

Fits:
61-65 Impala with 500 Steering Box

Details:

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For auto/manual trans
  • Radiator - 28.75 in W x 23 in H x 3 in D - Passenger Side Inlet - Passenger Side Outlet - Aluminum - Natural - 500 Steering Box Cutout - GM B-Body 1961-65
  • Direct fitment for 61-65 Impala with 500 steering box

Radiator Specs:

  • Core Height 17.5 inch
  • Core Width 18.5 inch
  • Overall Height 23 inch
  • Overall Width 28.75 inch
  • Overall Thickness 3 inch
  • Upper Hose 1.50 inch
  • Lower Hose 1.75 inch
  • Tubes (2) 1.25 inch Tubes

Specifications

Brand Cold Case Radiators
Part Number CHI565A-5
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
28-3/4 in
Overall Height
23 in
Overall Depth
3 in
Core Width
18-1/2 in
Core Height
17-1/2 in
Inlet Side
Passenger Side
Inlet Upper/Lower
Upper
Inlet Size
1-1/2 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-3/4 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Downflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Automatic, Manual
Make: Chevrolet

Fitment:
1961 - 1965 Chevrolet Impala
1964 - 1965 Chevrolet Impala SS

Fitment Notes:
61-65 Impala with 500 Steering Box
