Cold Case Radiators 66-67 Chevelle Radiator and Dual 12in Fan Kit MT

Cold Case Radiators 66-67 Chevelle Radiator and Dual 12in Fan Kit MT

$678.54 USD
$678.54 USD
Sale Sold out
Shipping Policy

CCRCHE542K

Inventory: 3 in stock

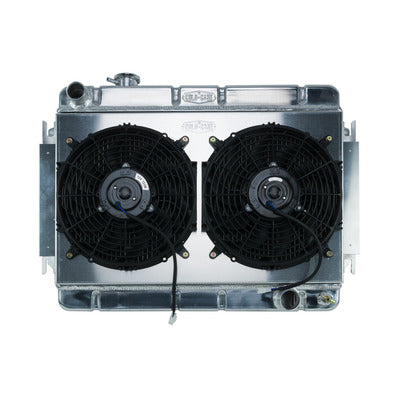

66-67 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit (manual transmission). These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.

Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • Fan Diameter 12 Inch
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 Inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For manual/standard trans
  • Direct fitment for 66-67 Chevelle/El Camino
  • Radiator and Fan - 27.75 in W x 20.5 in H x 3 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Manual - GM A-Body 1966-67 - Kit

Radiator Specs:

  • Core Height 15.4 Inch
  • Core Width 24.7 Inch
  • Overall Height 20.5 Inch
  • Overall Width 27.75 brackets Inch
  • Overall Thickness 6 Inch
  • Tubes (2) 1.25 Inch Tubes
  • Upper Hose 1.57 Inch
  • Lower Hose 1.77 Inch

Brand Cold Case Radiators
Part Number CHE542K
Old Part Number RPE542K
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
27-3/4 in
Overall Height
20-1/2 in
Overall Depth
3 in
Core Width
24-45/64 in
Core Height
15-13/32 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-9/16 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
No
Flow Direction
Downflow
Cap Included
No
Fan Included
Yes
Fan Quantity
2
Fan Diameter
12 in
Fan CFM
2,800 cfm
Blade Material
Plastic
Blade Color
Black
Shroud Material
Aluminum
Shroud Color
Natural
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Kit

Vehicle Type: Car
Transmission Type: Manual
Make: Chevrolet
Cylinders: 8 Cylinder

Fitment:
1966 - 1967 Chevrolet Chevelle
1966 - 1967 Chevrolet El Camino
1966 - 1967 Chevrolet Chevelle Deluxe
1966 - 1967 Chevrolet Chevelle SS
1967 - 1967 Chevrolet Chevelle 300
1967 - 1967 Chevrolet Chevelle 300 Deluxe
1967 - 1967 Chevrolet Chevelle Concours

Fitment Notes:
66-67 Chevelle/El Camino MT Dual 12 Inch
