Cold Case Radiators 66-67 Chevelle Radiator and Dual 12in Fan Kit AT
CCRCHE542AK (3 in stock)Cold Case Radiators
Regular price
$631.99
Sale

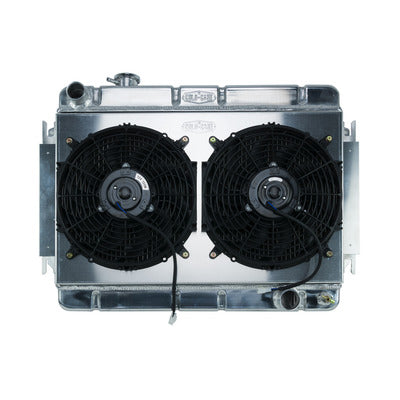

66-67 Chevelle / El Camino Aluminum Radiator and Dual 12 Inch Fan Kit (automatic transmission). These COLD-CASE radiators are Tig-welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 Inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Atuomatice trans
- Direct fitment for 66-67 Chevelle/El Camino
- Radiator and Fan - 27.75 in W x 20.5 in H x 3 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM A-Body 1966-67 - Kit
Radiator Specs:
- Core Height 15.4 Inch
- Core Width 24.7 Inch
- Overall Height 20.5 Inch
- Overall Width 27.75 brackets Inch
- Overall Thickness 6 Inch
- Tubes (2) 1.25 Inch Tubes
- Upper Hose 1.57 Inch
- Lower Hose 1.77 Inch
Specifications
Brand | Cold Case Radiators |
Part Number | CHE542AK |
Old Part Number | RPE542K |
Application Specific
|
Yes
|
Pass
|
Single
|
Row Number
|
2
|
Overall Width
|
27-3/4 in
|
Overall Height
|
20-1/2 in
|
Overall Depth
|
3 in
|
Core Width
|
24-45/64 in
|
Core Height
|
15-13/32 in
|
Inlet Side
|
Driver Side
|
Inlet Upper/Lower
|
Upper
|
Inlet Size
|
1-9/16 in
|
Inlet Style
|
Hose Barb
|
Inlet Quantity
|
1
|
Outlet Side
|
Passenger Side
|
Outlet Upper/Lower/Middle
|
Lower
|
Outlet Size
|
1-49/64 in
|
Outlet Style
|
Hose Barb
|
Outlet Quantity
|
1
|
Tube Size
|
1-1/4 in
|
Fluid Cooler
|
Yes
|
Flow Direction
|
Downflow
|
Cap Included
|
No
|
Fan Included
|
Yes
|
Fan Quantity
|
2
|
Fan Diameter
|
12 in
|
Fan CFM
|
2,800 cfm
|
Blade Material
|
Plastic
|
Blade Color
|
Black
|
Shroud Material
|
Aluminum
|
Shroud Color
|
Natural
|
Material
|
Aluminum
|
Color
|
Polished
|
Finish
|
Polished
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Chevrolet
Cylinders: 8 Cylinder
Transmission Type: Automatic
Make: Chevrolet
Cylinders: 8 Cylinder
Fitment:
1966 - 1967 Chevrolet Chevelle
1966 - 1967 Chevrolet El Camino
1966 - 1967 Chevrolet Chevelle Deluxe
1966 - 1967 Chevrolet Chevelle SS
1967 - 1967 Chevrolet Chevelle 300
1967 - 1967 Chevrolet Chevelle 300 Deluxe
1967 - 1967 Chevrolet Chevelle Concours
1966 - 1967 Chevrolet Chevelle
1966 - 1967 Chevrolet El Camino
1966 - 1967 Chevrolet Chevelle Deluxe
1966 - 1967 Chevrolet Chevelle SS
1967 - 1967 Chevrolet Chevelle 300
1967 - 1967 Chevrolet Chevelle 300 Deluxe
1967 - 1967 Chevrolet Chevelle Concours
Fitment Notes:
66-67 Chevelle/El Camino AT Dual 12 Inch
66-67 Chevelle/El Camino AT Dual 12 Inch
