Cold Case Radiators 64-65 Chevelle Radiator and Dual 12in Fan Kit AT
CCRCHE541AK (1 in stock)Cold Case Radiators
Regular price
$633.99
Sale

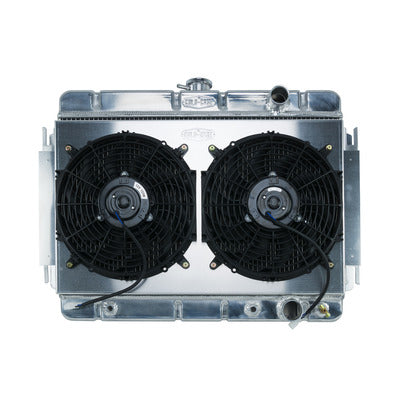

64-65 Chevelle / El Camino Aluminum Radiator And Dual 12 Inch Fan Kit AT Transmission. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 12 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For Automatic trans
- Direct fitment for 64-65 Chevelle/El Camino
- Radiator and Fan - 27.75 in W x 20.125 in H x 3 in D - Passenger Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - GM A-Body 1964-65 - Kit
Radiator Specs:
- Core Height 15.12 inch
- Core Width 24.72 inch
- Overall Height 20.125 inch
- Overall Width 27.75 inch
- Overall Thickness 6 inch
- Upper Hose 1.57 inch
- Lower Hose 1.77 inch
- Tubes (2) 1.25 inch Tubes
Specifications
| Brand | Cold Case Radiators |
| Part Number | CHE541AK |
| Old Part Number | RPE541AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
27-3/4 in
|
|
Overall Height
|
20-1/8 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
24-23/32 in
|
|
Core Height
|
15-1/8 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-9/16 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-49/64 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
2
|
|
Fan Diameter
|
12 in
|
|
Fan CFM
|
2,800 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Chevrolet
Fitment:
1964 - 1965 Chevrolet El Camino
1964 - 1965 Chevrolet Chevelle
1964 - 1965 Chevrolet Chevelle SS
1965 - 1965 Chevrolet Chevelle Deluxe
Fitment Notes:
64-65 Chevelle/El Camino with Automatic Transmission
