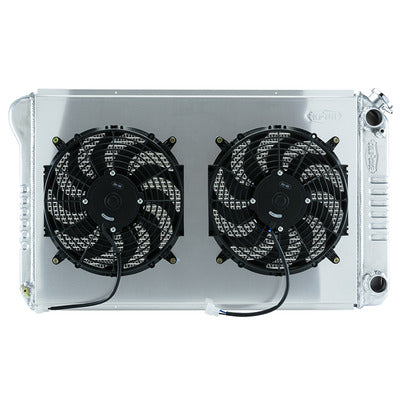

Cold Case Radiators 70-81 Camaro/Firebird LS Swap Radiator and 12in Fan

Cold Case Radiators 70-81 Camaro/Firebird LS Swap Radiator and 12in Fan

CCRCHC557AK (3 in stock)

Cold Case Radiators

Regular price $634.99 Sale

70-81 Camaro/Firebird LS Swap Aluminum Performance Radiator And 12 Inch Fan Kit. Firebird applications will need mounting brackets.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • Fan Diameter 12 Inch
  • All Aluminum
  • 2 rows of 1.25 inch tubes
  • Polished OE style tanks
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • Direct fitment for 70-81 Camaro/Firebird/Trans Am with LS motors
  • Radiator and Fan - 28.8 in W x 18.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - Small Block Chevy - GM F-Body 1967-69

Radiator Specs:

  • Core Height 18.4 inch
  • Core Width 27.5 inch
  • Overall Height 19 inch
  • Overall Width 33.2 inch
  • Overall Thickness 6 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.57 inch
  • Lower Hose 1.57 inch

Specifications

Brand Cold Case Radiators
Part Number CHC557AK
Old Part Number RFE557AK
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
33-13/64 in
Overall Height
19 in
Overall Depth
3 in
Core Width
27-1/2 in
Core Height
18-13/32 in
Inlet Side
Passenger Side
Inlet Upper/Lower
Upper
Inlet Size
1-9/16 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-9/16 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Crossflow
Cap Included
No
Fan Included
Yes
Fan Quantity
1
Fan Diameter
16 in
Fan CFM
2,500 cfm
Blade Material
Plastic
Blade Color
Black
Shroud Material
Aluminum
Shroud Color
Natural
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Kit

Fitment

Vehicle Type: Car
Transmission Type: Automatic, Manual
Make: Chevrolet, Pontiac
Engine: LS Swap
Cylinders: 8 Cylinder
Fitment:
1970 - 1980 Chevrolet Camaro
1970 - 1981 Pontiac Firebird
1970 - 1981 Pontiac Firebird Esprit
1970 - 1981 Pontiac Firebird Formula
1970 - 1973 Chevrolet Camaro RS
1970 - 1972 Chevrolet Camaro SS
1970 - 1981 Pontiac Firebird Trans Am
1970 - 1974 Chevrolet Camaro Z28
1973 - 1978 Chevrolet Camaro LT
1975 - 1975 Chevrolet Camaro RS
1976 - 1978 Chevrolet Camaro LT Rally Sport
1976 - 1980 Chevrolet Camaro Rally Sport
1977 - 1981 Chevrolet Camaro Z28
1979 - 1981 Chevrolet Camaro Berlinetta
1981 - 1981 Chevrolet Camaro Sport
1970 - 1981 Pontiac Trans Am
Fitment Notes:
70-81 F-Body LS Swap Dual 12 Inch
