Cold Case Radiators 67-69 Camaro SB Radiator AT

Cold Case Radiators 67-69 Camaro SB Radiator AT

CCRCHC549A (3 in stock)

Cold Case Radiators

Regular price $396.99 Sale

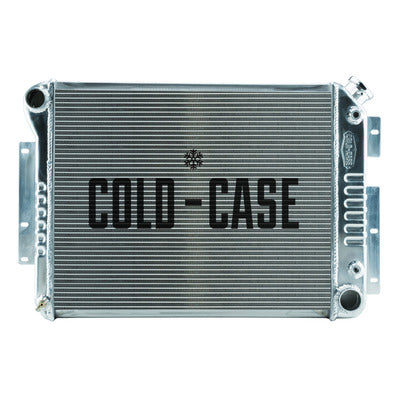

1967-1969 Camaro Small Block Aluminum Performance Radiator. AT Cars. For Big Block cars, use CHC11A.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

  • 100 percent TIG welded
  • All Aluminum
  • Polished OE style tanks
  • (2) 1.25 inch Tubes
  • 16 fins per inch
  • Corrugated fins that give more surface area and more thermal transfer
  • Pressure tested
  • For Automatic trans
  • Direct fitment for 67-69 Camaro w/ Small Block
  • 28.8 in W x 18.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - Small Block Chevy - GM F-Body 1967-69

Radiator Specs:

  • Core Height 16.85 inch
  • Core Width 21.25 inch
  • Overall Height 18.5 inch
  • Overall Width 28.8 inch brackets
  • Overall Thickness 3 inch
  • Tubes (2) 1.25 inch Tubes
  • Upper Hose 1.57 inch
  • Lower Hose 1.77 inch

Specifications

Brand Cold Case Radiators
Part Number CHC549A
Old Part Number RPE549
Application Specific
Yes
Pass
Single
Row Number
2
Overall Width
28-51/64 in
Overall Height
18-1/2 in
Overall Depth
3 in
Core Width
21-1/4 in
Core Height
16-27/32 in
Inlet Side
Driver Side
Inlet Upper/Lower
Upper
Inlet Size
1-9/16 in
Inlet Style
Hose Barb
Inlet Quantity
1
Outlet Side
Passenger Side
Outlet Upper/Lower/Middle
Lower
Outlet Size
1-49/64 in
Outlet Style
Hose Barb
Outlet Quantity
1
Tube Size
1-1/4 in
Fluid Cooler
Yes
Flow Direction
Crossflow
Cap Included
No
Material
Aluminum
Color
Polished
Finish
Polished
Quantity
Each

Fitment

Vehicle Type: Car
Transmission Type: Automatic
Make: Chevrolet
Engine: Chevy Small Block

Fitment:
1967 - 1969 Chevrolet Camaro
1967 - 1969 Chevrolet Camaro RS
1967 - 1969 Chevrolet Camaro SS
1967 - 1969 Chevrolet Camaro Z28

Fitment Notes:
67-69 Camaro SB AT
