Cold Case Radiators 67-69 Camaro/Firebird LS Swap Radiator and 16in Fan
Cold Case Radiators 67-69 Camaro/Firebird LS Swap Radiator and 16in Fan
SKU:CCRCHC547AK
Inventory: 3 in stock
Couldn't load pickup availability

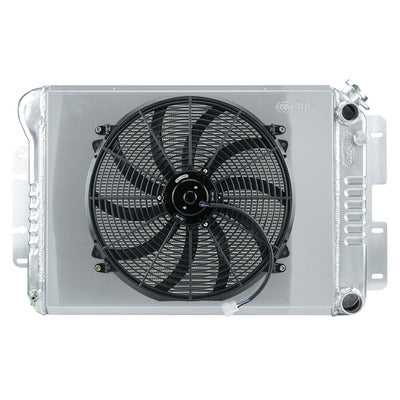

67-69 Camaro/Firebird LS SWAP Aluminum Radiator And 16 Inch Fan Kit. These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful.
Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- (2) 1.25 inch Tubes
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- Dual Flow Design
- Direct fitment for 67-69 F-Body cars with LS motors
- Radiator and Fan - 30 in W x 19 in H x 3 in D - Passenger Side Inlet - Passenger Side Outlet - Aluminum - Natural - GM LS-Series - GM F-Body 1967-69 - Kit
Radiator Specs:
- Core Height 16.85 inch
- Core Width 23 inch
- Overall Height 19 inch
- Overall Width 30 inch
- Overall Thickness 6 inch
- Upper Hose 1.22 inch
- Lower Hose 1.37 inch
- Tubes (2) 1.25 inch Tubes
| Brand | Cold Case Radiators |
| Part Number | CHC547AK |
| Old Part Number | RPE547AK |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
30 in
|
|
Overall Height
|
19 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
23 in
|
|
Core Height
|
16-27/32 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-7/32 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-3/8 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
1
|
|
Fan Diameter
|
16 in
|
|
Fan CFM
|
2,500 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Vehicle Type: Car
Transmission Type: Manual
Make: Chevrolet, Pontiac
Engine: LS Swap
Cylinders: 8 Cylinder
Fitment:
1967 - 1969 Pontiac Firebird 400
1967 - 1969 Pontiac Firebird
1967 - 1969 Chevrolet Camaro
1967 - 1967 Pontiac Firebird HO
1967 - 1969 Chevrolet Camaro RS
1967 - 1969 Pontiac Firebird Sprint
1967 - 1969 Chevrolet Camaro SS
1967 - 1969 Chevrolet Camaro Z28
1968 - 1969 Pontiac Firebird 350
1969 - 1969 Pontiac Firebird 350 HO
1969 - 1969 Pontiac Firebird Trans Am
1967 - 1969 Pontiac Trans Am
1968 - 1971 Chevrolet Nova
Fitment Notes:
67-69 F-Body LS Swap 16 Inch
