Cold Case Radiators 67-69 Camaro BB / Firebird AT Radiator and 16in Fan
CCRCHC11AK (Not in stock)Cold Case Radiators
Regular price
$587.99
Sale

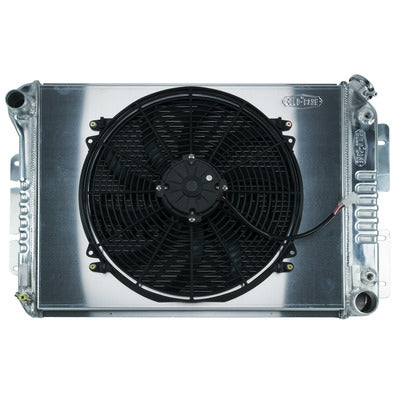

67-69 Camaro BB / Firebird Auto Transmission Aluminum Radiator and 16 Inch Fan Kit (automatic transmission).
These radiators are original appearing and have the correct stamping. Once painted, you will be hard pressed to find a difference over an original versus a COLD-CASE.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
Fits:
- 67-69 Firebird
- 67-69 Camaro
- 68-71 Nova w/ bracket mount
- Automatic Transmission
Details:
- 100 percent TIG welded
- Fan Diameter 16 Inch
- All Aluminum
- Polished OE style tanks
- (2) 1.25 inch Tubes
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For automatic transmission
- Direct fitment for 67-69 Camaro BB/Firebird/Trans Am
- Radiator and Fan - 27.5 in W x 18.5 in H x 3 in D - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Automatic - Big Block Chevy- GM F-Body 1967-68 - Kit
Radiator Specs
- Core Height 16.85 inch
- Core Width 23 inch
- Overall Height 18.5 inch
- Overall Width 27.5 inch
- Overall Thickness 6 inch
- Tubes (2) 1.25 inch Tubes
- Upper Hose 1.50 inch
- Lower Hose 1.75 inch
Specifications
| Brand | Cold Case Radiators |
| Part Number | CHC11AK |
| Old Part Number | RFE11AL |
|
Application Specific
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
27-1/2 in
|
|
Overall Height
|
18-1/2 in
|
|
Overall Depth
|
3 in
|
|
Core Width
|
23 in
|
|
Core Height
|
16-27/32 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
1-1/2 in
|
|
Inlet Style
|
Hose Barb
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-49/64 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1-1/4 in
|
|
Fluid Cooler
|
Yes
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Fan Included
|
Yes
|
|
Fan Quantity
|
1
|
|
Fan Diameter
|
16 in
|
|
Fan CFM
|
2,500 cfm
|
|
Blade Material
|
Plastic
|
|
Blade Color
|
Black
|
|
Shroud Material
|
Aluminum
|
|
Shroud Color
|
Natural
|
|
Material
|
Aluminum
|
|
Color
|
Polished
|
|
Finish
|
Polished
|
|
Quantity
|
Kit
|
Fitment
Vehicle Type: Car
Transmission Type: Automatic
Make: Chevrolet and Pontiac
Engine: Chevy Big Block
Cylinders: 8 Cylinder
Fitment:
- 1967 - 1969 Pontiac Firebird 400
- 1967 - 1969 Pontiac Firebird
- 1967 - 1969 Chevrolet Camaro
- 1967 - 1967 Pontiac Firebird HO
- 1967 - 1969 Chevrolet Camaro RS
- 1967 - 1969 Pontiac Firebird Sprint
- 1967 - 1969 Chevrolet Camaro SS
- 1967 - 1969 Chevrolet Camaro Z28
- 1968 - 1969 Pontiac Firebird 350
- 1969 - 1969 Pontiac Firebird 350 HO
- 1969 - 1969 Pontiac Firebird Trans Am
- 1967 - 1968 Pontiac Trans Am
- 1968 - 1971 Chevrolet Nova
Fitment Notes: 67-69 Camaro BB / Firebird AT 16 Inch
