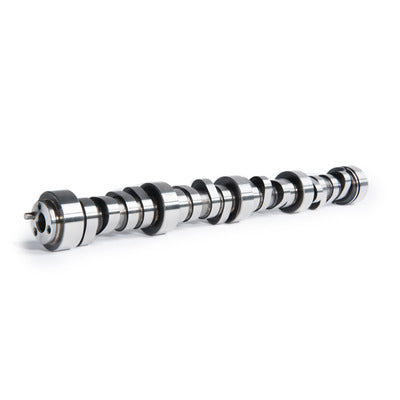

Cam Motion Titan 2 LS1 Camshaft (221/226-112+2)

LS Hyd Roller Cam 3-Bolt .595 /.586 112 Degrees - Camshaft - Titan 2 - Hydraulic Roller - Lift 0.595 / 0.586 in - Duration 221 / 226 - 112 LSA - 2500 / 6200 RPM - GM LS-Series - Each

The TITAN II LS1 camshaft is designed for mild performance in cars using 5.3-6.2 liter LS engines equipped with cathedral port LS1 style heads. The TITAN II LS1 will have a slight performance idle and improved power throughout the RPM range with emphasis on mid-range to upper mid-range power and torque. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust and increased stall speed torque converter. Vehicles using this cam will also benefit from high flow intake systems and in some applications, increased rear axle ratios.

The TITAN series cams are designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores.

• Cam Motion .600: Lift Beehive Valve Springs or our .660" lift Dual Valve Spring Kit
• Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods

Grind # XA221/350-XA226/345-12+2

• Hydraulic Roller Camshaft
• Mild Performance
• Duration at .050": 221/226
• 112 Lobe Center Angle with a 110 Intake Centerline
• Lift with 1.7 Rocker Arm Ratio: .595"/.586"
• Recommended Displacement: 5.3-6.2 Liter Engines
• Cylinder Heads: Cathedral Port
• Recommended Compression Ratio: 9.4-11.00:1
• Recommended Headers: Stock Manifolds - 1 3/4"
• Recommended Stall Converter: 2500-3500
• Recommended Rear Axle Ratio: Stock - 3.73

*Designed for factory style, or high flow aftermarket long runner intake manifolds.
