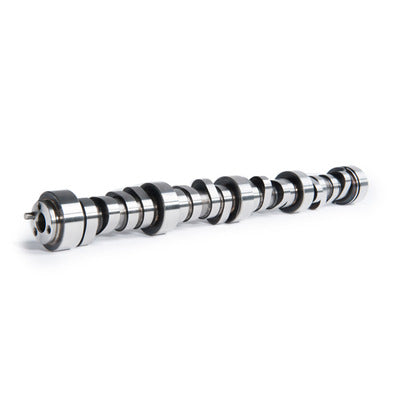

Cam Motion Junkyard Dog Rectangle Port V1 LS Camshaft (229/245-112+4) for "Single Plane"

LS Hyd Roller Cam 3-Bolt .621 /.604 112 Degrees - Camshaft - Junkyard Dog - Hydraulic Roller - Lift 0.621 / 0.604 in - Duration 229 / 245 - 112 LSA - 3500 / 6700 RPM - GM LS-Series - Each

The Junkyard Dog "Single Plane" Rectangle Port V1 cam is an aggressive and powerful camshaft created for aggressive street performance and street-strip applications where a carburetor or single plane intake manifold is used with rectangle port heads. This camshaft is an excellent choice for enthusiasts who want to hotrod or race a stock short block. This camshaft is designed to get maximum performance out of a single plane equipped 6.0 to 6.2 liter stock short block while still maintaining acceptable valve clearance without fly-cutting the pistons in rectangle port engines. However, it is still the owner's/engine builder's responsibility to verify sufficient clearance during installation. Also, milling of the heads, installing thinner head gaskets or installing larger diameter valves will reduce your piston to valve clearance. The Junkyard Dog Single Plane Camshaft has a very lopey idle. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust, increased stall speed torque converter and increased rear axle ratios.

The The Junkyard Dog Single Plane cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores.

• MPN: 03-01-0077

Recommended Accessories:

• Cam Motion .660" Lift Dual Valve Spring Kit
• Cam Motion 5/16" .080" Wall Hardened Chromoly Pushrods

Specifications
