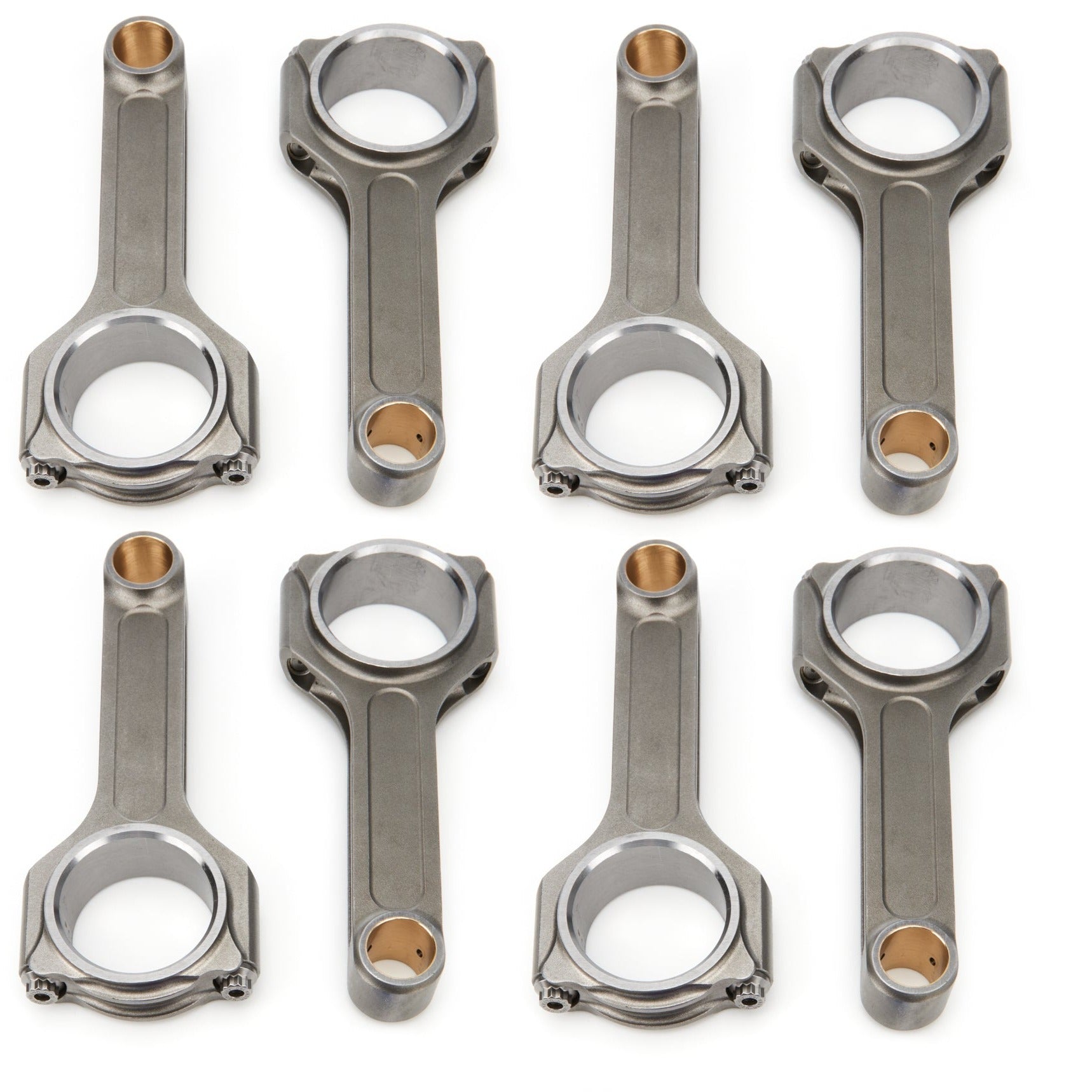

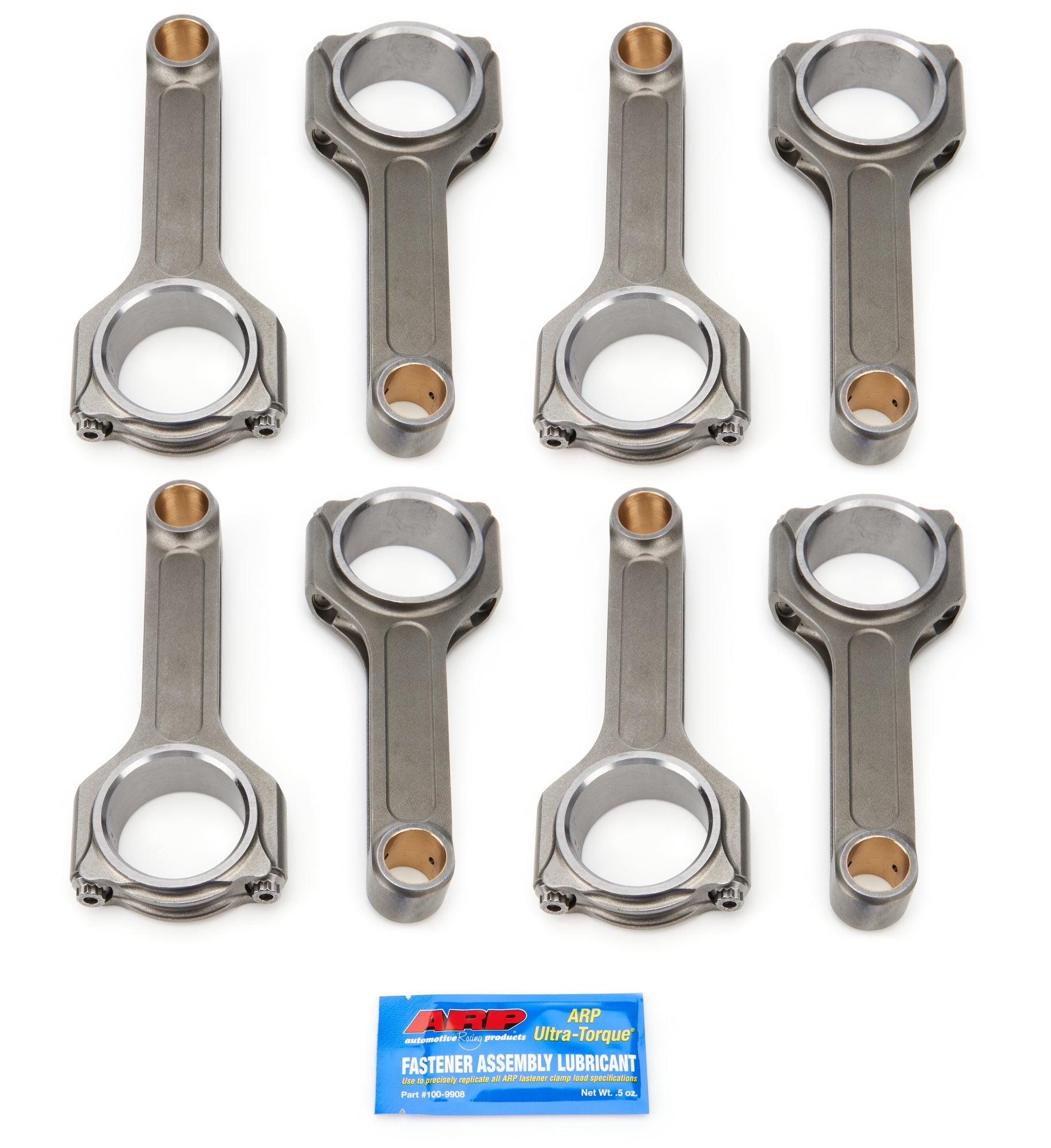

Designed for power adder or diesel applications, Compstar Xtreme connecting rods feature 4340 steel construction and thickened H-beam flanges for enhanced strength. Non-essential weight is then removed from the rod to keep the overall weight in check. These Compstar Xtreme rods come with ARP2000 fasteners. Sold as a set of eight.
Specifications
| Brand |
Callies |
| Part Number |
CSB6535ES3BDAX
|
|
Product Line
|
Compstar Extreme
|
|
Beam Style
|
H Beam
|
|
Stroker Clearanced
|
No
|
|
Rod Length
|
6.535 in
|
|
Bushed / Press Fit Wrist Pin
|
Bushed
|
|
Small End Bore Diameter
|
0.990 in
|
|
Small End Width
|
1.050 in
|
|
Rod Journal Diameter
|
2.200 in
|
|
Large End Bore Diameter
|
2.325 in
|
|
Large End Width
|
0.990 in
|
|
Fastener Style
|
Cap Screw
|
|
Fastener Manufacturer
|
ARP
|
|
Fastener Product Line
|
ARP2000
|
|
Fastener Diameter
|
7/16 in
|
|
Fastener Head Style
|
12 Point
|
|
Fastener Alloy
|
ARP2000
|
|
Fastener Material
|
Chromoly
|
|
Weight Matched
|
Yes
|
|
Approximate Weight
|
828g
|
|
Material Processing
|
Shot-Peened
|
|
Forged
|
Yes
|
|
Alloy
|
4340
|
|
Material
|
Steel
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Set of 8
|
Connecting Rod - Compstar Extreme - H Beam - 6.535 in Long - Bushed - 7/16 in Cap Screws - ARP2000 - Big Block Chevy - Set of 8 - Part Number: CSB6535ES3BDAX
