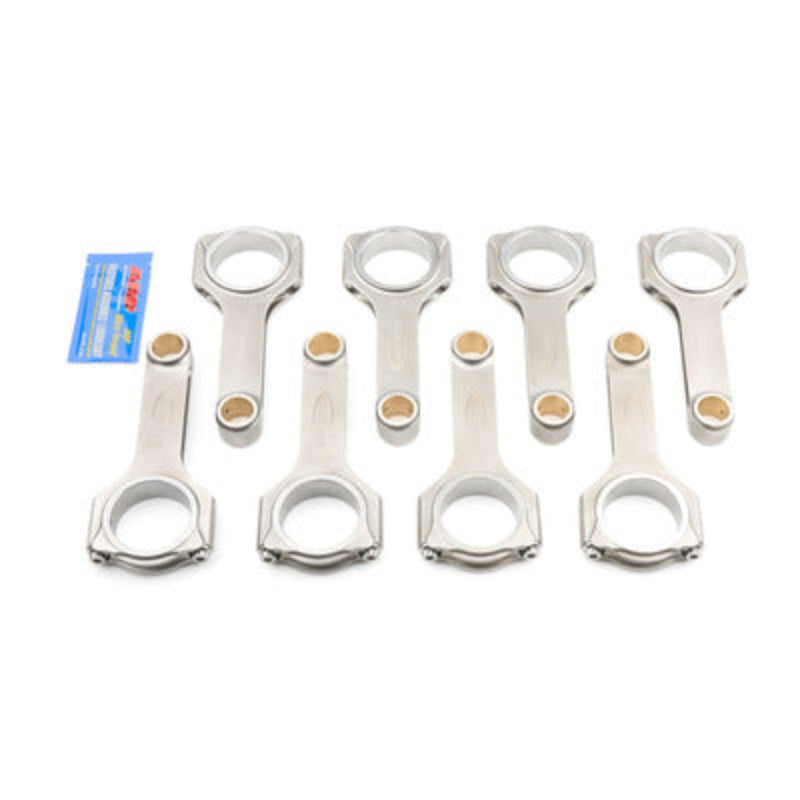

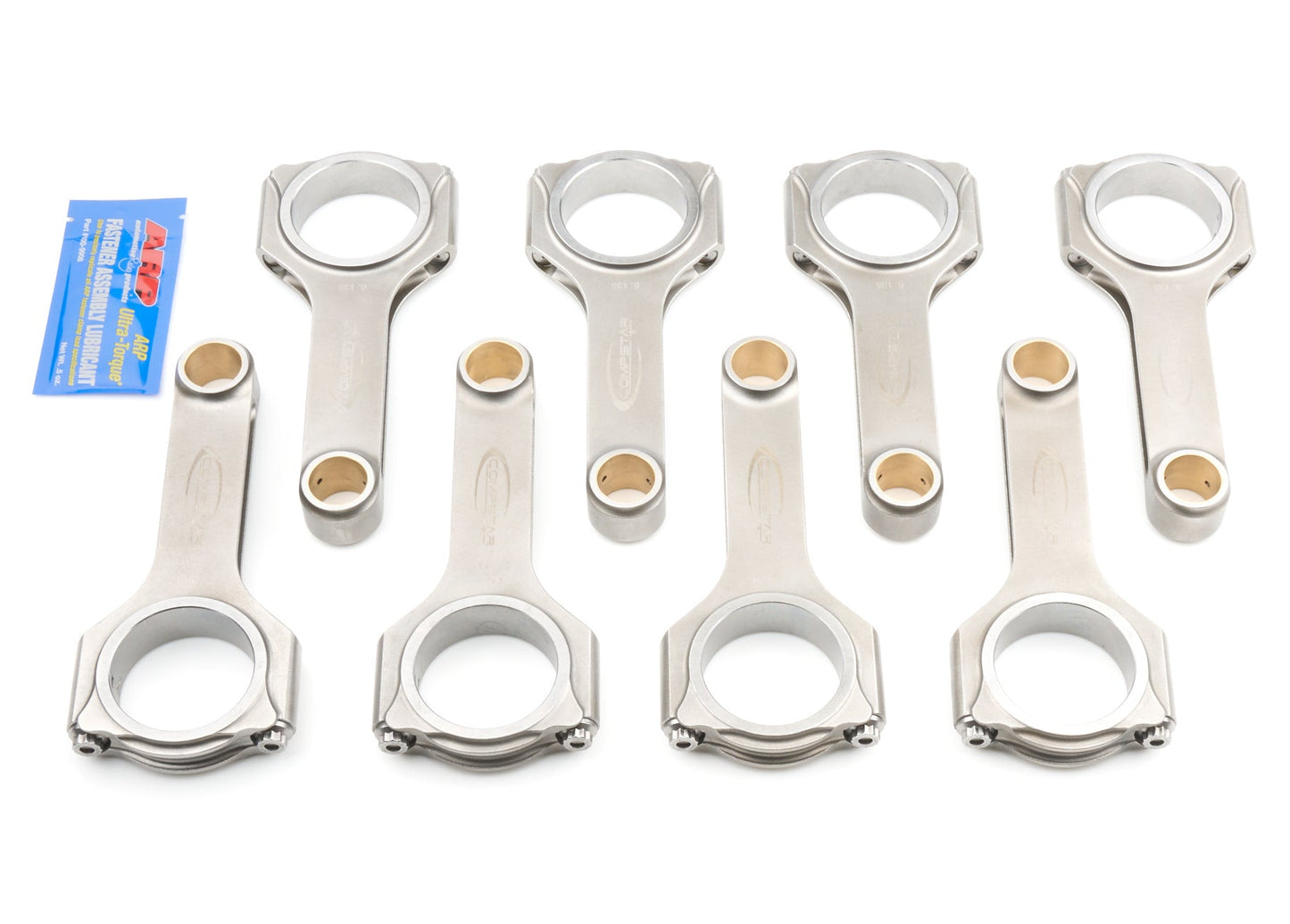

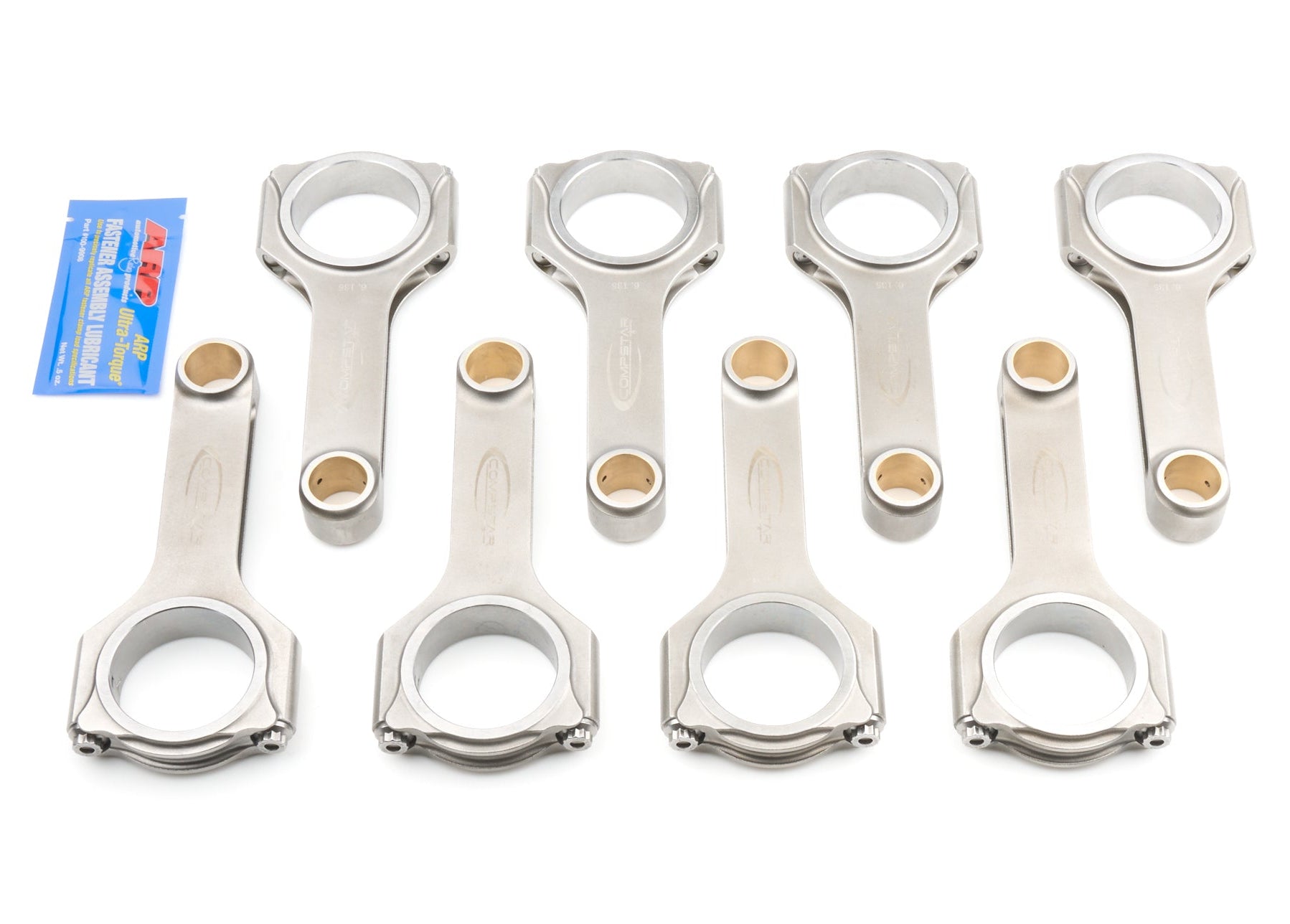

Callies Compstar 6.135” H-Beam Connecting Rods, Big Block Chevy
Callies Compstar 6.135” H-Beam Connecting Rods, Big Block Chevy
Regular price
$824.00 USD
Regular price
Sale price
$824.00 USD
Unit price
/
per
SKU:CALCSB6135ES3B9AH
Inventory: 2 in stock
Couldn't load pickup availability
Compstar 6.135” H-Beam Connecting Rods, Big Block Chevy
The original Compstar H-Beam Connecting Rods are designed for high-horsepower engines with stroker applications. ARP L19 7/16” bolts are used to clamp the force at the critical mating joint between the rod and main cap. The H-beam is machined from fine-grained 4340 material for superior tensile strength. Wrist pin bushings are deformation-resistant Ampco 18 material.
- Premium 4340 forged steel construction
- H-bean design for superior strength
- Precision multi-stage heat treatment for maximum fatigue resistance
- Shot-peened for added surface strength and crack resistance
- ARP L19 7/16” rod bolts
- Ideal for high horsepower street and race engines
Connecting Rod, Compstar, H Beam, 6.135 in Long, Bushed, 7/16 in Cap Screws, Forged, Steel, Big Block Chevy (BBC), Set of 8
|
Brand
|
Callies
|
|
Part Number
|
CSB6135ES3B9AH
|
|
Product Line
|
Compstar
|
|
Beam Style
|
H Beam
|
|
Stroker Clearanced
|
Yes
|
|
Rod Length (in)
|
6.135 in
|
|
Bushed / Press Fit Wrist Pin
|
Bushed
|
|
Small End Bore Diameter (in)
|
0.990 in
|
|
Small End Width (in)
|
1.060 in
|
|
Rod Journal Diameter (in)
|
2.200 in
|
|
Large End Bore Diameter (in)
|
2.325 in
|
|
Large End Width (in)
|
0.992 in
|
|
Fastener Style
|
Cap Screw
|
|
Fastener Manufacturer
|
ARP
|
|
Fastener Product Line
|
ARPL19
|
|
Fastener Diameter
|
7/16 in
|
|
Fastener Head Style
|
12 Point
|
|
Fastener Alloy
|
ARPL19
|
|
Fastener Material
|
Chromoly
|
|
Weight Matched
|
Yes
|
|
Approximate Weight
|
770g
|
|
Material Processing
|
Shot-Peened
|
|
Forged
|
Yes
|
|
Alloy
|
4340
|
|
Material
|
Steel
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Set of 8
|
