Bulldog 190758 Square Jack, 8000 lbs

Bulldog 190758 Square Jack, 8000 lbs

REE190758 (29 in stock)

Reese

Regular price $176.99 Sale

Trailer Jack - Bulldog - Manual - Topwind - 15 in Of Travel - 5000 lb Capacity - Steel - Gray Paint - Each

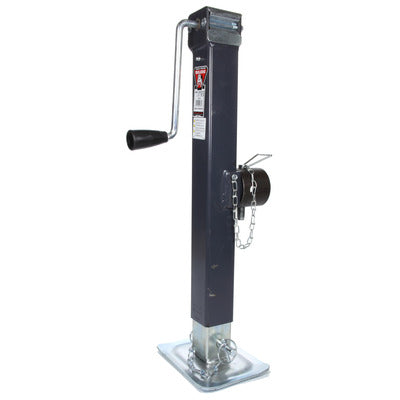

BULLDOG's 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!

  • Use the painted outer tube as the final finish or primer
  • Zinc-plated inner tube and drop leg
  • 4.7" Outer / inner tube overlap - results in optimal side load performance
  • 5/8" screw stem - provides insurance against screw stem twisting off
  • Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
  • Topwind models - bushing in top cap, eagle claw grip
  • Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
  • Sidewind models - 1:1.33 gear ratio
  • MPN: 190758

Specifications

Brand: BULLDOG
Part Number: 190758
Warranty: Limited 5 Year Warranty
UPC: 016118097603
Dimensions: 2.25" L x 0.25" W x 5.5" H
(Shipping Dimensions)
Weight: 28.5 lbs.
Package Type: Bulk
Capacity: 8,000 lbs.
Travel: 15 in.
Retracted: 12.66 in.
Extended: 41.16 in.
Clearance: 12.4 in.
Model No.: SWL 190 DL-B TSMQ w/P&C
Handle Style: Sidewind
