Brodix
Brodix SBC ASCS 360 Spec Aluminum. Block 4.125 w/350 Mains
Brodix SBC ASCS 360 Spec Aluminum. Block 4.125 w/350 Mains
SKU:BRO8012003
Inventory: 2 in stock
Couldn't load pickup availability

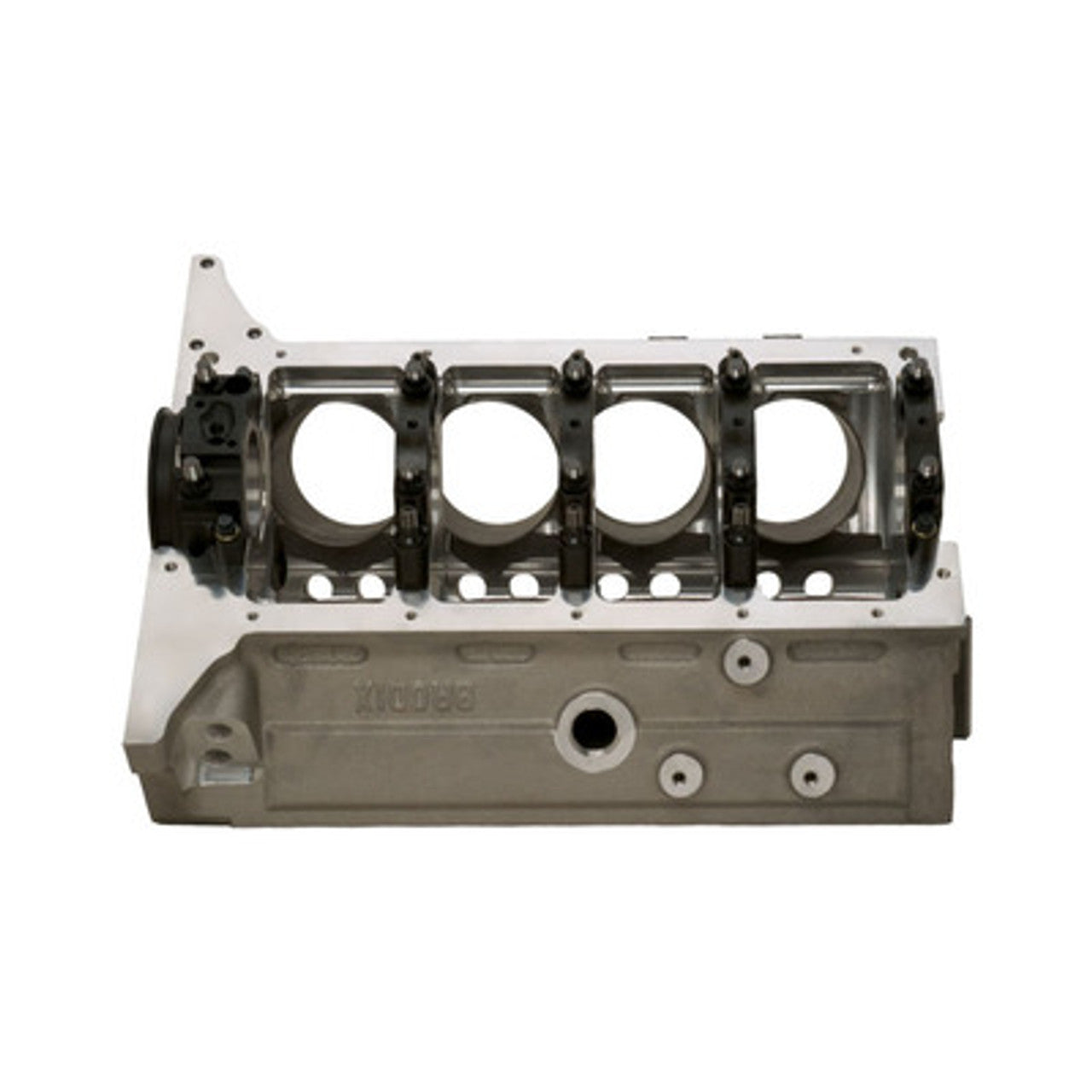

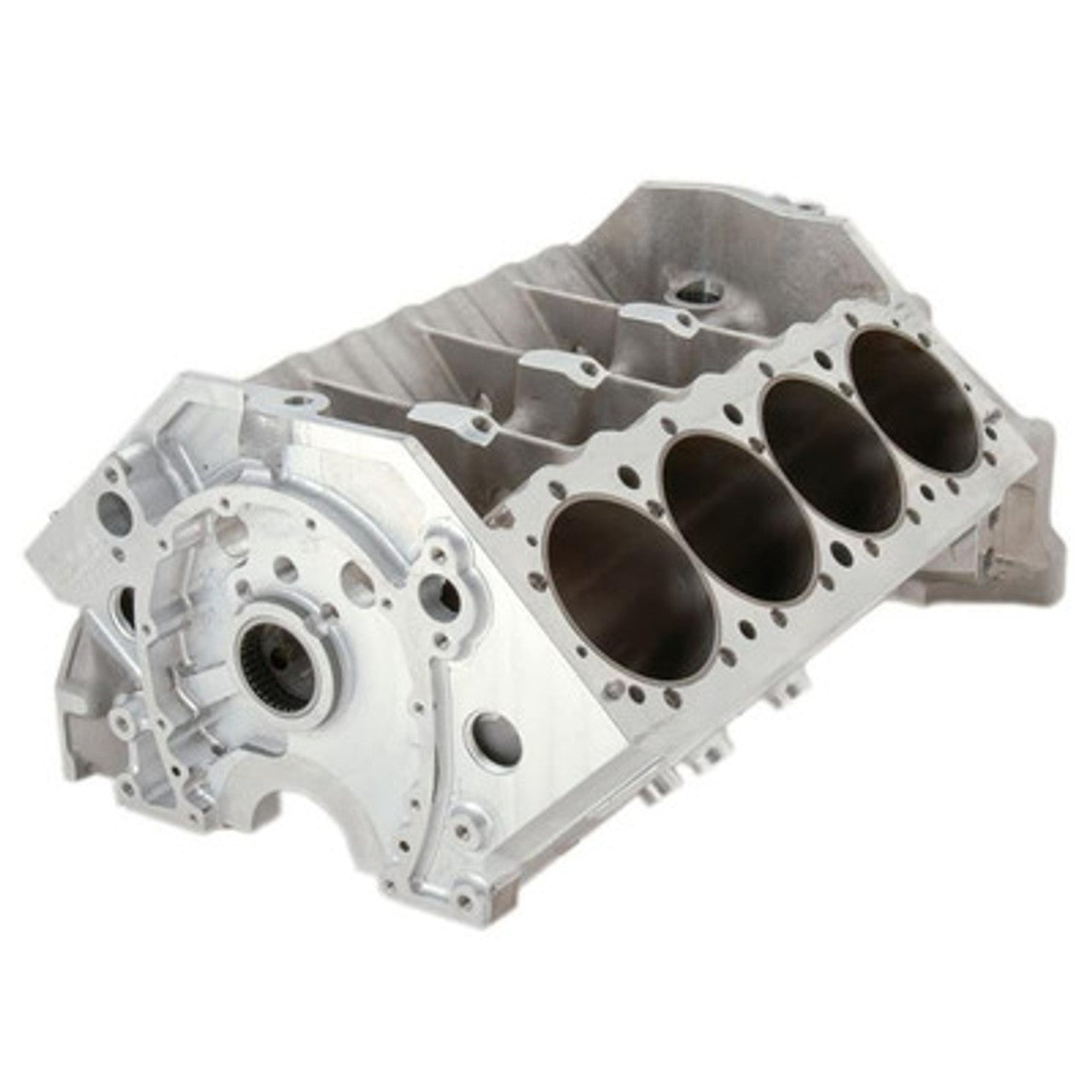

Small Block Chevy ASCS Spec Aluminum Engine Block
The spec, small block Chevy engine block for the American Sprint Car Series. Block is not only lighter and more cost effective than a lightened cast iron block but may be more easily repaired. Manufactured from A-356 aluminum, block includes a 4.125" bore, 350 (2.450") main bearing sizing, standard 9.025" deck height, and billet steel main caps. Block additionally features a raised cam design, .904" lifter sizing, 55mm cam tunnel, full bellhousing, standard oil pan rails, and is identified with the ASCS logo. Sold complete with sprint rear cam plug.
Note: Block has an oil feed to the front, lacks the OEM-style oil filter pad, and has no water provisions for an OEM water pump.
Brodix SBC ASCS 360 Spec Aluminum. Block 4.125 w/350 Mains - Engine - ASCS Spec - Bare Block - 4.125 in Bore - 9.025 in Deck - 350 Mains - 4-Bolt Mains - Aluminum - Small Block Chevy - Sold as Each - Part Number: 8012003 - Brand: Brodix
Air Restricted
Truck Freight Only (additional shipping charges apply)
|
Brand
|
Brodix
|
|
Part Number
|
8012003
|
|
Product Line
|
ASCS Spec
|
|
Cylinder Bore
|
4.125 in
|
|
Deck Height
|
9.025 in
|
|
1-Piece / 2-Piece Rear Main Seal
|
2 Piece
|
|
4 Bolt / 2 Bolt Mains
|
4 Bolt
|
|
Raised Cam Location
|
Yes
|
|
Pan Rails Standard / Wide
|
Standard
|
|
Main Caps Included
|
Yes
|
|
Main Cap Material
|
Billet Steel
|
|
Main Style
|
350 Main
|
|
Main Bearing Diameter
|
2.450 in
|
|
Main Cap Fasteners Included
|
Yes
|
|
Cam Bearings Included
|
No
|
|
Lifter Bore Diameter
|
0.904 in
|
|
Wet Sump / Dry Sump
|
Dry Sump
|
|
Oil Filter Provision
|
No
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
