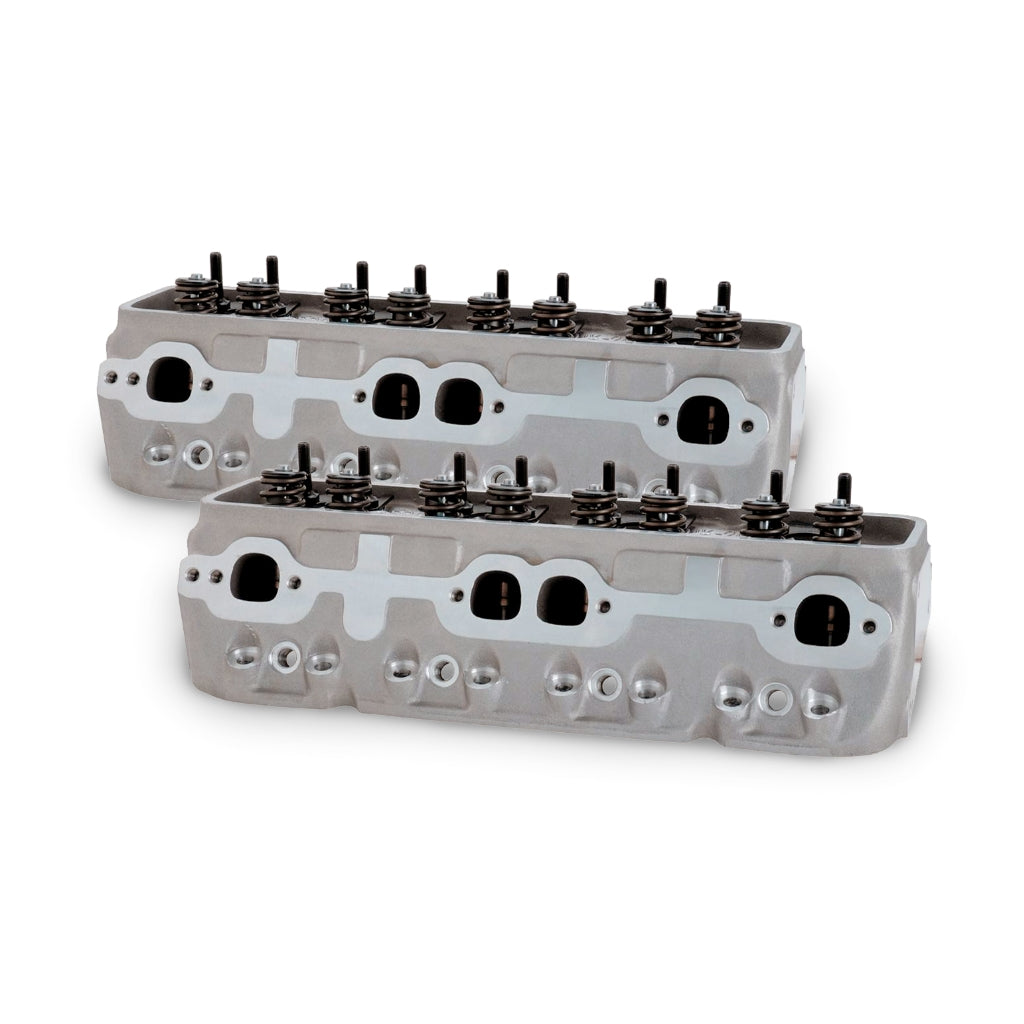

Brodix SBC 200cc IK200 Heads 64cc S/P Assembled
Brodix SBC 200cc IK200 Heads 64cc S/P Assembled
SKU:BRO1021001
Inventory: 3 in stock
Couldn't load pickup availability
IK Series Small Block Chevy Cylinder Heads
IK Series 23° cylinder heads combine performance and value. Available in 180cc or 200cc intake port versions with 64cc or 70cc combustion chambers, aluminum heads have phosphorous bronze valve guides, straight spark plugs, ductile iron valve seats, and are compatible with accessory mounting. All heads are sold in pairs, fully assembled or as bare castings. Bare heads require valve job, porting, and valve train components.
Brodix SBC 200cc IK200 Heads 64cc S/P Assembled - Cylinder Head - IK 200 - Assembled - 2.020 / 1.600 in Valves - 200 cc Intake - 64 cc Chamber - 1.470 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair - Part Number: 1021001 - Brand: Brodix
|
Brand
|
Brodix
|
|
Part Number
|
1021001
|
|
Product Line
|
IK
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
64 cc
|
|
Plug Angle
|
Straight
|
|
Intake Runner Volume
|
200 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Exhaust Port Shape
|
D
|
|
Exhaust Port Location
|
Stock
|
|
Intake Valve Size
|
2.020 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Intake Valve Length
|
4.920 in
|
|
Exhaust Valve Size
|
1.600 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Exhaust Valve Length
|
4.920 in
|
|
Valve Spring Included
|
Yes
|
|
Intended Camshaft Style
|
Hydraulic Roller
|
|
Maximum Lift
|
0.575 in
|
|
Valve Spring Diameter
|
1.470 in
|
|
Valve Spring Number
|
Dual
|
|
Valve Spring Damper
|
No
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Chromoly
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Steel
|
|
Valve Lock Angle
|
7 Degree
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Material
|
PTFE
|
|
Rocker Studs Included
|
Yes
|
|
Rocker Stud Size
|
3/8-24 in
|
|
Pushrod Guide Plate Included
|
Yes
|
|
Guide Plate Pushrod Size
|
5/16 in
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Perimeter Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Intake Valve Angle
|
23 Degree
|
|
Exhaust Valve Angle
|
23 Degree
|
|
Accessory Bolt Holes
|
Drilled and Tapped
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Pair
|
