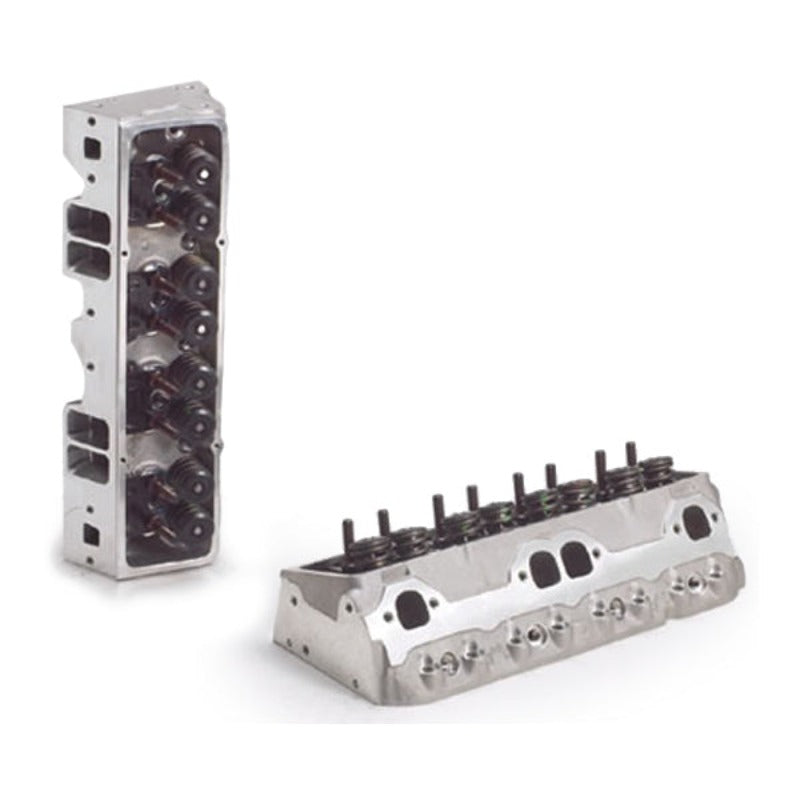

Brodix SBC 221cc Track 1 Heads 67cc 2.08/1.60 Assembled
Brodix SBC 221cc Track 1 Heads 67cc 2.08/1.60 Assembled
SKU:BRO1001001
Inventory: 1 in stock
Couldn't load pickup availability
Track 1 Small Block Chevy Cylinder Heads
Track 1 and CNC Track1, 23° aluminum heads deliver economical, out-of-the-box horsepower and are available bare or assembled. Assembled heads have blended bowls, matched ports, a performance valve job, 2.08" x 1.60" stainless valves, bronze guides, 7/16" screw-in studs, 5/16" guide plates, 1.550" dia. roller valve springs, and 10° steel retainers, and valve locks. Track 1 STS and KC CNC-ported heads are fitted with titanium retainers. Bare heads require valve job, porting, and valve train components. All heads are sold in pairs.
Brodix SBC 221cc Track 1 Heads 67cc 2.08/1.60 Assembled - Cylinder Head - Track 1 - Assembled - 2.080 / 1.600 in Valves - 221 cc Intake - 67 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Small Block Chevy - Pair - Part Number: 1001001 - Brand: Brodix
|
Brand
|
Brodix
|
|
Part Number
|
1001001
|
|
Product Line
|
Track 1
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
67 cc
|
|
Plug Angle
|
Angle
|
|
Intake Runner Volume
|
221 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Exhaust Port Shape
|
D
|
|
Exhaust Port Location
|
Stock
|
|
Intake Valve Size
|
2.080 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Intake Valve Length
|
4.965 in
|
|
Exhaust Valve Size
|
1.600 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Exhaust Valve Length
|
4.965 in
|
|
Valve Spring Included
|
Yes
|
|
Intended Camshaft Style
|
Solid Roller
|
|
Maximum Lift
|
0.700 in
|
|
Valve Spring Diameter
|
1.550 in
|
|
Valve Spring Number
|
Dual
|
|
Valve Spring Damper
|
Yes
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Steel
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Steel
|
|
Valve Lock Angle
|
10 Degree
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Material
|
PTFE
|
|
Rocker Studs Included
|
Yes
|
|
Rocker Stud Size
|
7/16-20 in
|
|
Pushrod Guide Plate Included
|
Yes
|
|
Guide Plate Pushrod Size
|
5/16 in
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Perimeter Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Intake Valve Angle
|
23 Degree
|
|
Exhaust Valve Angle
|
23 Degree
|
|
Accessory Bolt Holes
|
Drilled and Tapped
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Pair
|
