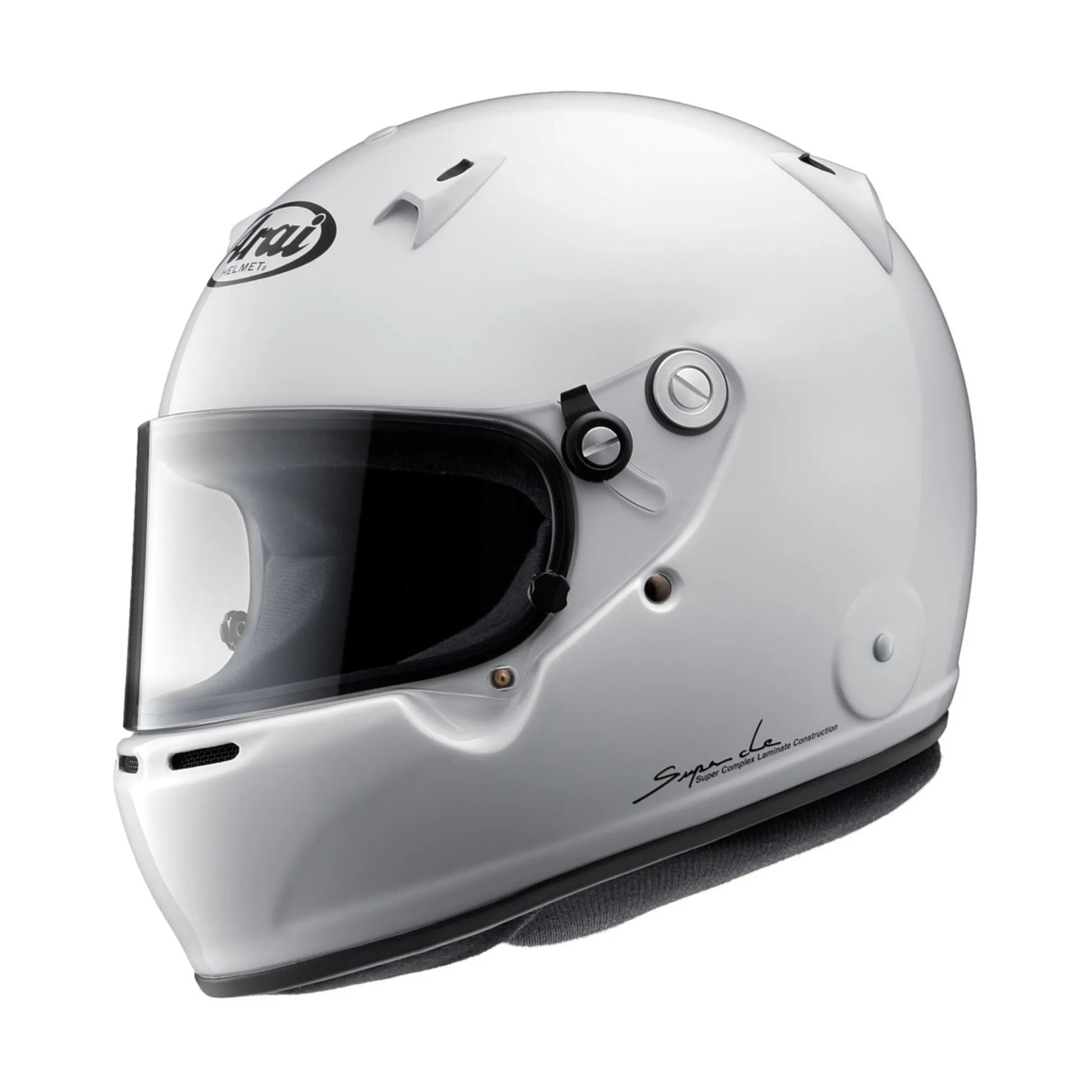

Arai GP-5W Helmet - Snell SA2020 / FIA

Arai GP-5W Helmet - Snell SA2020 / FIA

ARI685311184047 (2 in stock)

Regular price $809.95 Sale

The Arai GP-5W Helmet is a favorite of stock car racers, road racers and rally drivers.  The GP-5W is favored by stock car, sedan, and rally drivers because of its wider, 90mm eye port. With the larger eye port opening, the GP-5W uses an exclusive shield. This helmet is Snell SA2020 rated, and also FIA 8859-2015 certified.  The FIA sticker is applied to the interior of the helmet.

  • Wider eye port opening (90 mm / approximately 3.5")
  • Constructed of very light ScLc (Super Complex Laminate Construction) shell technology
  • Removable cheekpads
  • Color:  White
  • Snell SA2020 and FIA 8859-2015 certified

ScLc Construction
It is constructed of Arai's exclusive, very-lightweight ScLc shell technology (Super Complex Laminate Construction), so it maintains a low overall weight to offset the added weight of the larger shield.

Shell Shape
The shell is smaller with a more natural head shape.  The lower center of gravity balances and stabilizes the helmet so it feels even lighter helping to reduce fatigue.

Interior Fit
The interior fit is typical Arai, benefitting from over 50 years of research and refinement, and resulting in a helmet that, as mentioned previously, more closely matches the shape of the human head. The first is snug, allowing for the smallest possible helmet to be worn while still being comfortable.

Wider Eyeport
Larger 90mm eyeport, top to bottom, than comparable Arai models, provides a better vertical view desired by many sedan drivers. For drivers not needing a shield, a visor peak option is available.

Removable Cheekpads
The cheekpads are removable and washable for easier cleaning. More importantly, they're replaceable with optional sizes of varying thicknesses for a more custom, personalized fit.

Ventilation
The upper ventilation system incorporates two large intake ducts and the same two exhaust vent ducts found on the GP-5(PED). This vent system allows for improved air flow even within the confines of a sedan or closed cockpit.

M6 Anchor
Integrated seats to accommodate a variety of Head and Neck Restraint devices. Pre-Installed M6 threaded washer/nut, with 6mm threads, to accept a variety of anchors systems for variety of Head and Neck Restraint devices and make installation much easier for people not familiar with such installations. Flat surface area around the mounting nut to allow the anchor post base to rest flush with the helmet surface around the entire perimeter of the anchor base. FIA-8859-2015 certification sticker applied to the interior liner material.

Options
Standard shields in Clear, Light Tint, Dark Smoke; Anti- Fog Shields in Clear, Light Tint, Dark Smoke; and Tear-Offs in 5-Pack (10 mil thick) and 10-Pack (5 mil thick).

Specifications

Product Line
GP-5W
Open/Closed Face
Closed
Fresh Air
No
Vent System
Yes
Snell Rating
SA 2020
FIA Approved
Yes
Head and Neck Support Ready
Yes
Shield Included
Yes
Shield Color
Clear
Visor Included
No
Graphics
No
Bag Included
Yes
Gloss/Flat
Gloss
Material
Fiberglass
Color
White
Finish
Paint
Quantity
Each


Sizes

  • 685311184047 (Small)
  • 685311184054 (Medium)
  • 685311184061 (Large)
  • 685311184078 (XL)

Size Chart

Determine your helmet size by measuring your head at a point 1'' above your eyebrow and a point in the back of the head that results in the largest possible measurement.

Helmet Size Inches Metric
2XS 6-3/4" to 6-7/8" 21-1/4 to 21-5/8 54 to 55
XS 7" 22 56
Small 7-1/8" 22-3/8 57
Medium 7-1/4" to 7-3/8" 22-3/4 to 23-1/4 58 to 59
Large 7-1/2" 23-5/8 60
XL 7-5/8" to 7-3/4" 24 to 24-3/8 61 to 62
2XL
7-7/8" to 8" 24-3/4 to 25-1/4 63 to 64
3XL
8-1/8" to 8-1/4" 25-5/8 to 26 65 to 66
4XL 8-3/8" to 8-1/2" 26-3/8 to 26-3/4 67 to 68
