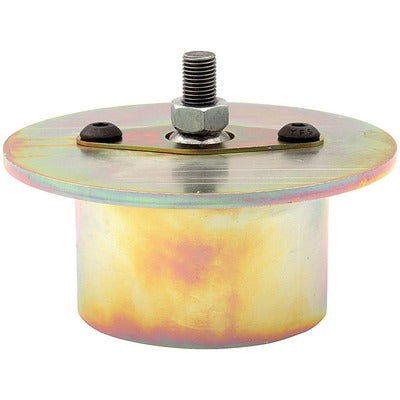

Allstar Swiveler Spring Cup 3.25 inch Welded Style

Swiveler cup is used in place of a standard upper spring plate and weight jack bolt on vehicles using conventional style coil springs. Mono-ball stud mount allows cup to pivot as needed to prevent binding during suspension travel and requires a weight jack bolt with a 7/16"-20 threaded end for proper installation. The sleeve and top are welded together on this unit to fit most applications using a 5" conventional spring.

• Brand: Allstar Performance

• Part Type: Coil Spring Seats
• Product Line: Allstar Performance Swiveler Spring Cups
• Coil Spring Seat Position: Upper
• Coil Spring Seat Material: Steel
• Coil Spring Seat Finish: Zinc plated
• Quantity: Sold individually
• Notes: The outside diameter of the spring locater is 3.250 inch
• Spring Cup - Upper - Swiveler - 7/16-20 in Thread - Steel - Cadmium - Universal - Each
• MPN: ALL56080

Note:  Reference the Allstar Performance Swiveler Spring Cup datasheet for additional information about the components that can be used to build custom size cups.
