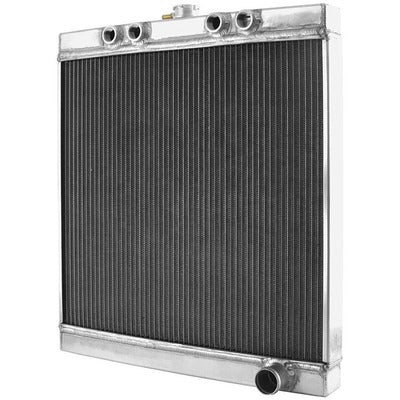

Allstar Sprint Car Radiator 20"x22"
ALL30028 (21 in stock)Allstar Performance
Regular price
$234.99
Sale
Aluminum radiator with furnace brazed tanks provides superior cooling in sprint applications. Features machined filler neck, 1-1/ 2" RH bottom outlet and four (4) female top outlet ports for use with -10ANO-ring fittings. Radiator uses a smaller diameter cap (not included) such as part numbers ALL30124 or ALL30125. The dimensions are 20" wide x 22" tall x 2" wide, and the radiator weighs 9.7 lbs.
- Radiator
- 20 in W x 22 in H x 2 in D
- 9.7 pounds
- Single Pass - Top Inlet - Passenger Side Outlet
- Aluminum, Natural
- Sprint Car
- Sold as Each
Specifications
|
Brand
|
Allstar Performance
|
|
Part Number
|
ALL30028
|
|
Universal
|
Yes
|
|
Pass
|
Single
|
|
Row Number
|
2
|
|
Overall Width
|
20 in
|
|
Overall Height
|
22 in
|
|
Overall Depth
|
2 in
|
|
Inlet Side
|
Center
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
10 AN
|
|
Inlet Style
|
Female
|
|
Inlet O-Ring
|
Yes
|
|
Inlet Quantity
|
4
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-1/2 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Flow Direction
|
Downflow
|
|
Cap Included
|
No
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
