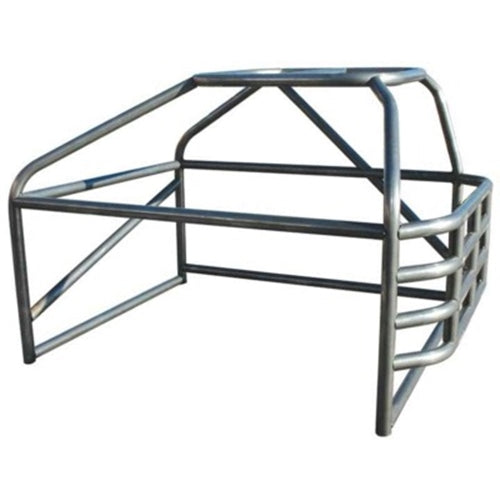

Allstar Performance Offset Deluxe Roll Cage Kits are ideal for use with template style or ABC bodies. The perimeter frame mount roll cage has the same features as other Allstar deluxe kits, but includes an offset main hoop and a narrow halo for cars with an offset body or narrow roof.
- Ideal for use with template style or ABC bodies
- Designed for cars with an offset body or narrow roof
- Perimeter frame mount roll cage includes an offset main hoop and a narrow halo

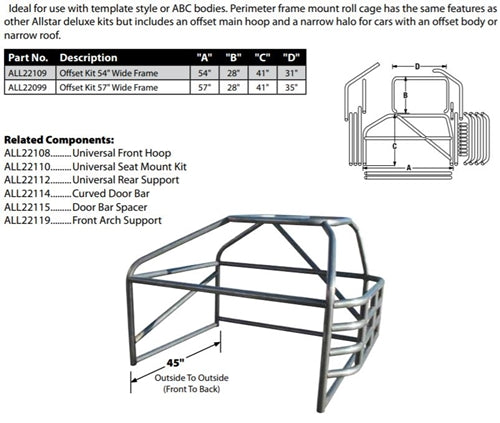

- Offset Kit - 54" Wide Frame
Note: This offset cage is designed using the same dimensions as the ALL22100 Intermediate metric chassis cage, but with an offset rear hoop when using template or offset bodies. The cage width is 52-1/2" CTC and 54" wide overall.
Specifications
| Brand |
Allstar Performance |
| Part Number |
ALL22109 |
|
Product Line
|
Offset Deluxe
|
|
Racing Type
|
Circle Track
|
|
Position
|
Complete
|
|
Number Of Floor Mounting Points
|
4-Point
|
|
Main Hoop Included
|
Yes
|
|
Gussets Included
|
Yes
|
|
Halo Included
|
Yes
|
|
Door Bars Included
|
Yes
|
|
Driver Side Door Bar Style
|
4 Bar
|
|
Passenger Side Door Bar Style
|
Z-Style
|
|
Front Dash Bar Included
|
Yes
|
|
Rear Dash Bar Included
|
Yes
|
|
Windshield Posts Included
|
Yes
|
|
Windshield Post Style
|
Curved
|
|
Tubing Diameter
|
1-3/4 in
|
|
Wall Thickness
|
0.095 in
|
|
Welding Required
|
Yes
|
|
Material
|
Steel
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
Spec Sheet
Click here for the
Allstar Roll Cage Kit ALL22109 Spec Sheet.
