Allstar Performance

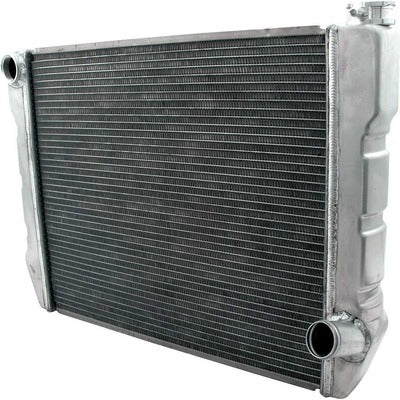

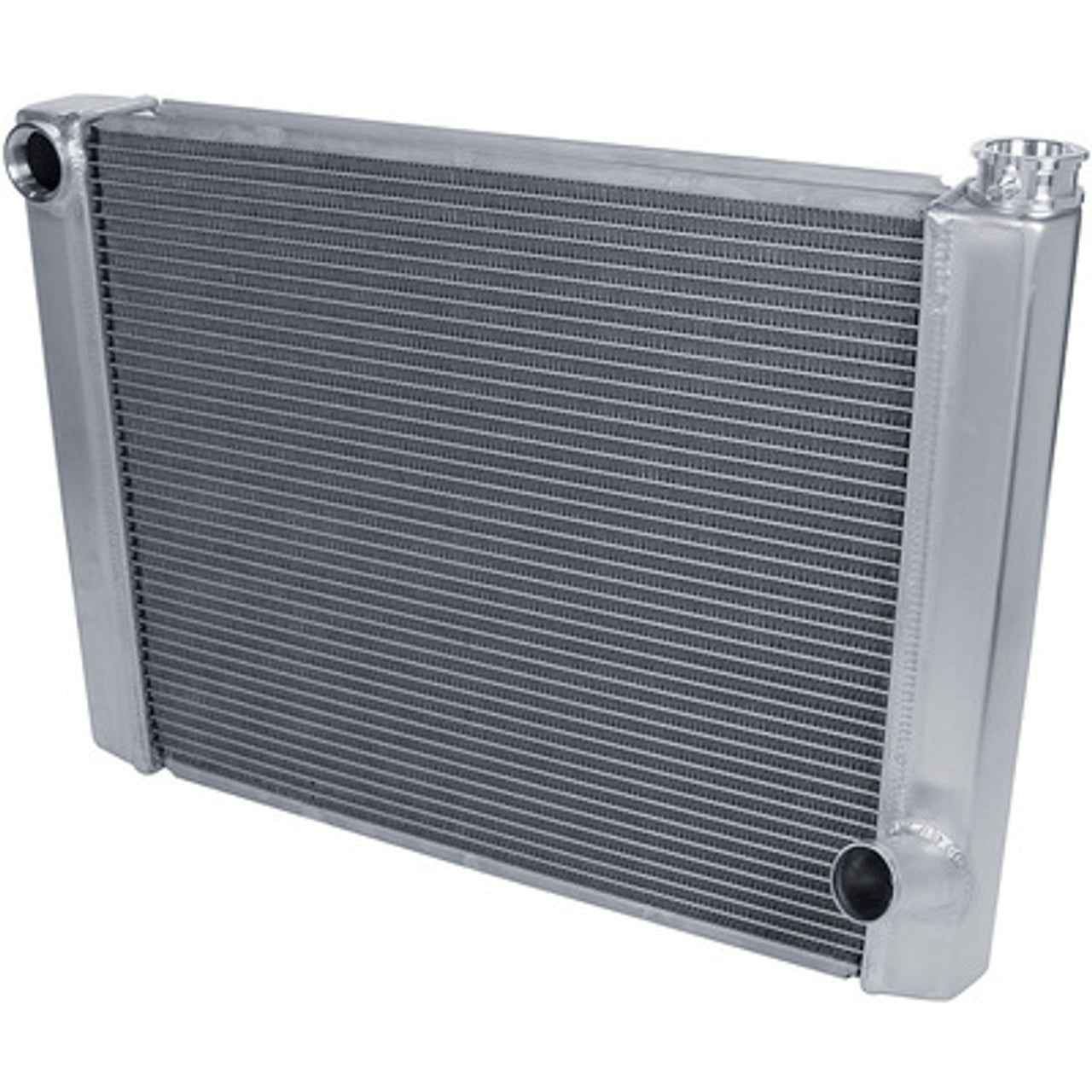

Allstar Triple Pass Radiator 19"x28"
Allstar Triple Pass Radiator 19"x28"
Regular price
$244.99 USD
Regular price
Sale price
$244.99 USD
Unit price
/
per
SKU:ALL30047
100 in stock
Couldn't load pickup availability
Triple pass radiators circulate coolant across the top portion of the radiator, back across the mid-section and through the bottom allowing maximum heat dissipation. This style radiator requires a high flow water pump to be most effective. These radiators feature a universal 1-5/8”-12 ORB fitting inlet design that allows for multiple inlet fitting options (sold separately). The lower outlet is a fully welded 1-3/4” standard hose fitting for push-on style radiator hoses.
Radiator - 28 in W x 19 in H x 2-1/4 in D - Triple Pass - Driver Side Inlet - Passenger Side Outlet - Aluminum - Natural - Each
|
Brand
|
Allstar Performance
|
|
Part Number
|
ALL30047
|
|
Universal
|
Yes
|
|
Pass
|
Triple
|
|
Row Number
|
2
|
|
Overall Width
|
28 in
|
|
Overall Height
|
19 in
|
|
Overall Depth
|
2.25 in
|
|
Core Width
|
23 in
|
|
Core Height
|
18 in
|
|
Inlet Side
|
Driver Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet A Size
|
20 AN
|
|
Inlet A Style
|
Female
|
|
Inlet O-Ring
|
Yes
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet A Size
|
1.75 in
|
|
Outlet A Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1 in
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Filler
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
|
Note
|
Inlet Fittings Sold Separately
|
