Allstar Performance
Allstar Asphalt Late Model Radiator
Allstar Asphalt Late Model Radiator
Regular price
$429.99 USD
Regular price
Sale price
$429.99 USD
Unit price
/
per
SKU:ALL30044
16 in stock
Couldn't load pickup availability

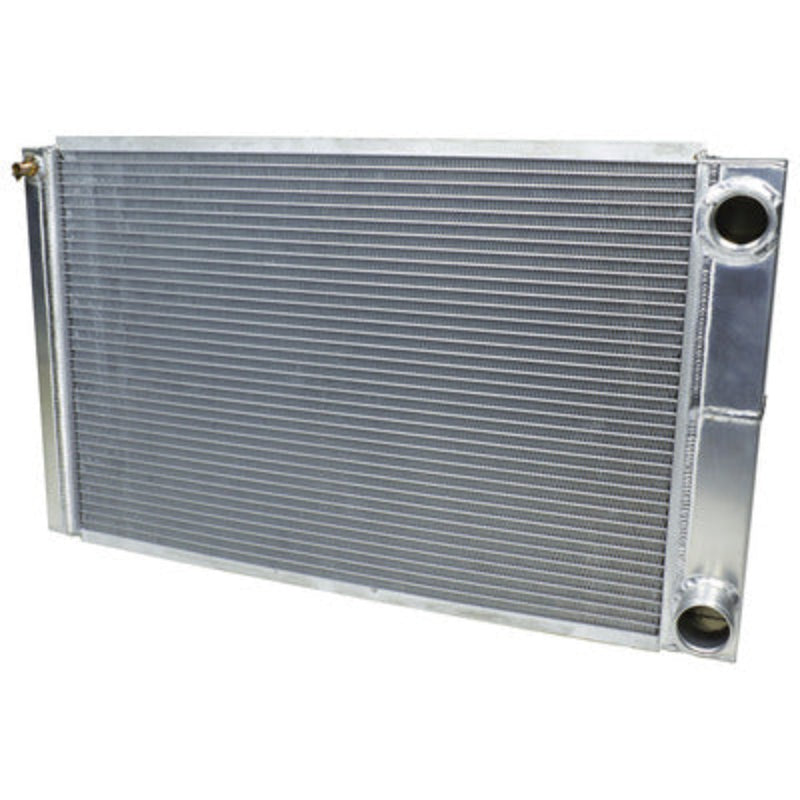

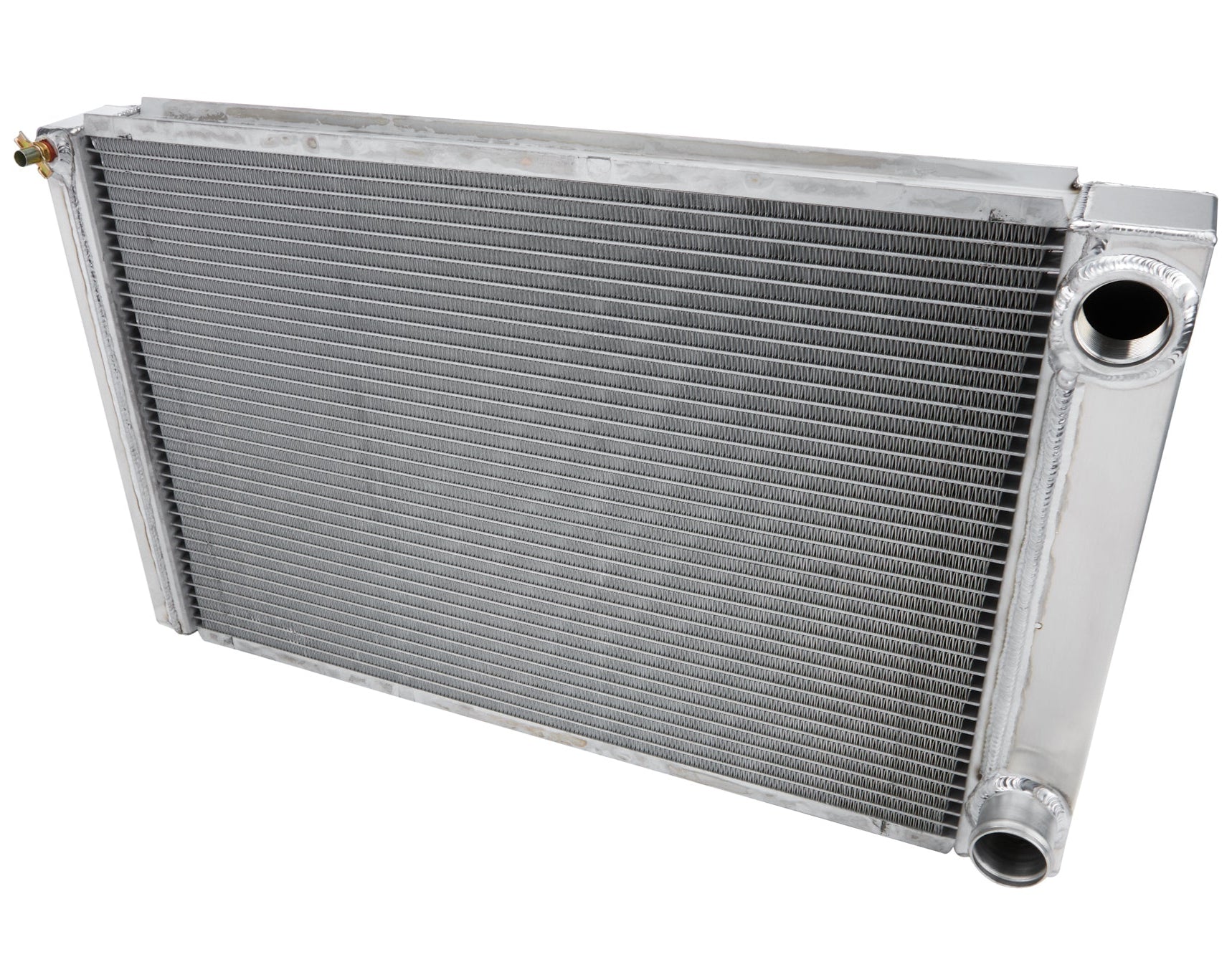

Aluminum dual pass radiator measures 16" x 28" overall featuring two rows of 15/16" tubes, a core width of 2-1/4" and an overall tank width of 2-3 / 4”. The outlet is designed for a standard 1-3/4" hose connection and welded 90 degrees to the tank not angled upward. The inlet is a universal design to accept fittings for 1-1/ 2" standard hose, 1-3/4" hose, -16 or -20an fittings (sold separately). Radiator is designed for use with a surge tank, so it does not have a filler neck. A 1/4" petcock located near the top on the driver’s side to release possible trapped air in the system when filling.
- Radiator - 28 in W x 16 in H x 2-1/4 in D - Dual Pass - Passenger Side Inlet - 90 Degree Passenger Side Outlet - Aluminum - Natural - Asphalt Late Model - Sold as Each
|
Brand
|
Allstar Performance
|
|
Part Number
|
ALL30044
|
|
Universal
|
Yes
|
|
Pass
|
Dual
|
|
Row Number
|
2
|
|
Overall Width
|
28 in
|
|
Overall Height
|
16 in
|
|
Overall Depth
|
2-3/4 in
|
|
Core Width
|
23 in
|
|
Core Height
|
15 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet Size
|
20 AN
|
|
Inlet Style
|
Female
|
|
Inlet O-Ring
|
Yes
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet Size
|
1-3/4 in
|
|
Outlet Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
15/16 in
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
No Filler
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
