Allstar Performance
Allstar Lightweight Dual Pass Radiator 31"
Allstar Lightweight Dual Pass Radiator 31"
SKU:ALL30347
47 in stock
Couldn't load pickup availability

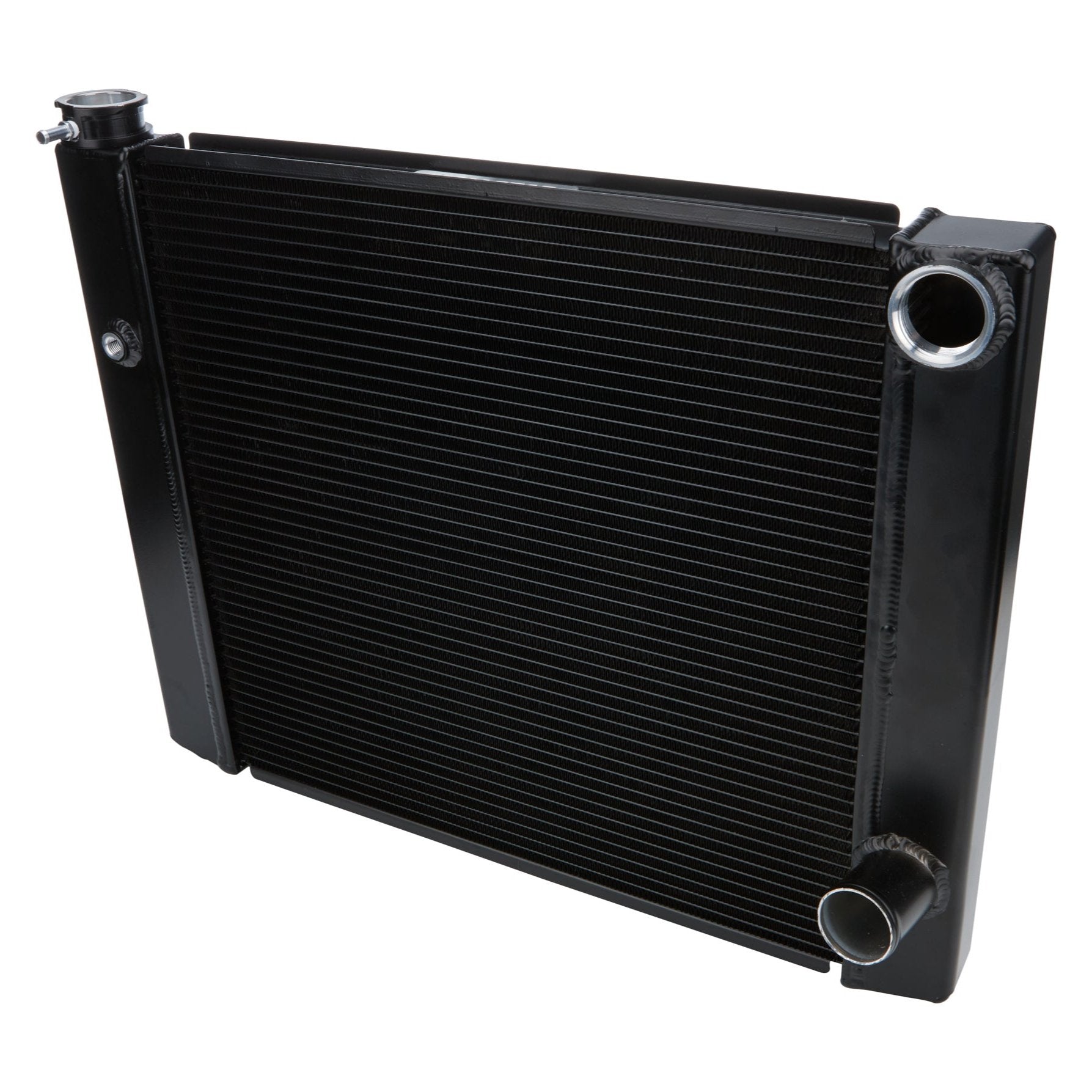

Lightweight Dual Pass Single Row Aluminum Radiator 31"

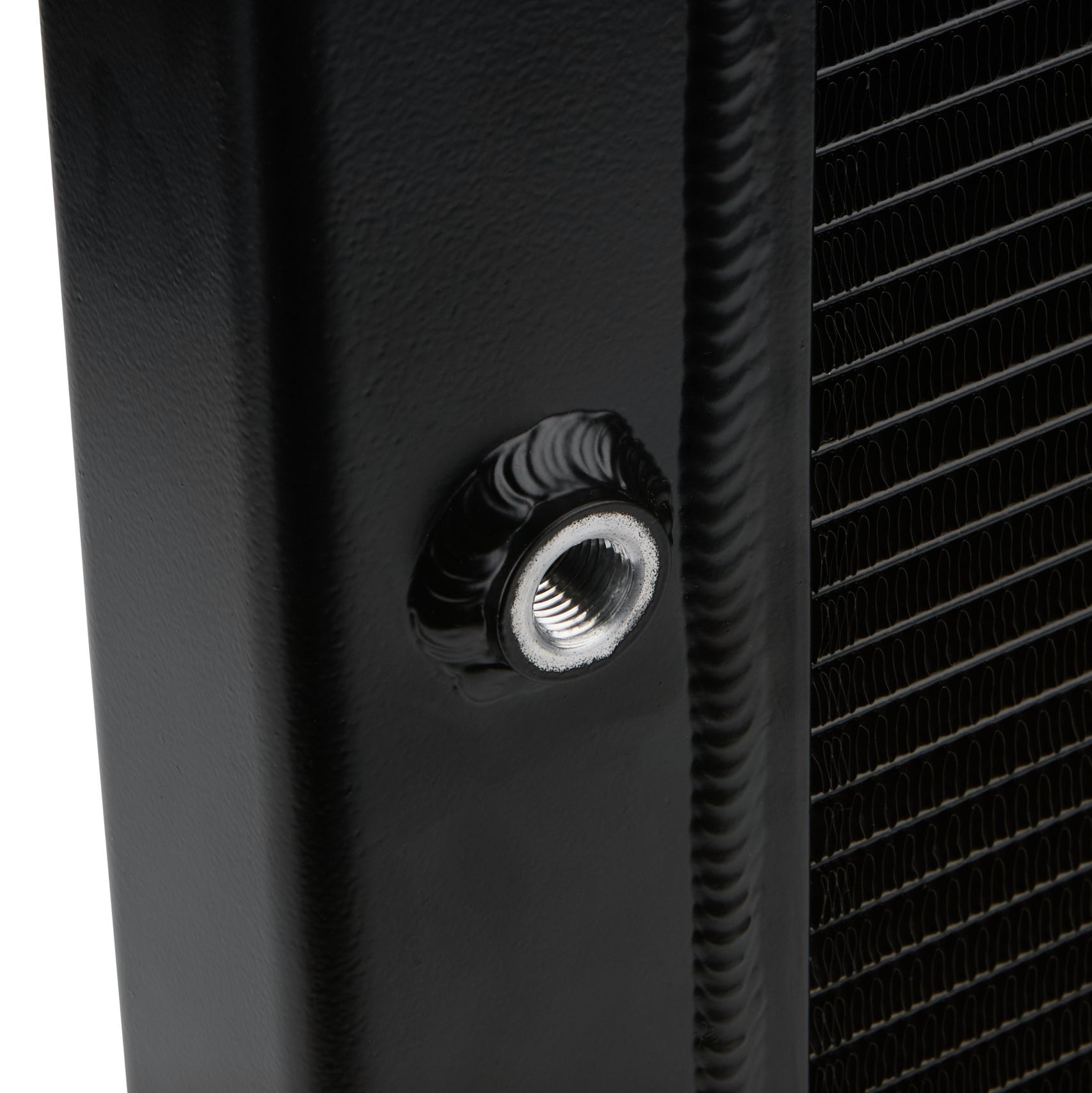

Dual pass radiators feature an all-aluminum construction including a 1-1/2" wide single row core that is furnace brazed, a fully welded billet filler neck with a removable overflow fitting, ¼" NPT bung for an accessory port and finished with a heat-resistant black coating. These radiators feature a universal 1-5/8"-12 ORB fitting inlet design that allows for multiple inlet fitting options (sold separately). The lower outlet is a fully welded 1-3/4" standard hose fitting for push-on style radiator hoses.
- Radiator
- 31 in W x 19 in H x 1.5 in D
- Dual Pass
- Passenger Side Inlet, Passenger Side Outlet
- Aluminum, Black Paint
Note: Radiator does not include top inlet fitting. Fittings: ALL30038 1-1/2" Inet fitting; ALL30041 1-3/4" Inlet Fitting; ALL30039 -16 Inlet fitting; ALL30040 -20 Inlet fitting. Inlet Fitting Thread Size: 1-5/8"X12 (20AN)16 fins per inch.
|
Brand
|
Allstar Performance
|
|
Part Number
|
ALL30347
|
|
Universal
|
Yes
|
|
Pass
|
Dual
|
|
Row Number
|
1
|
|
Overall Width
|
31 in
|
|
Overall Height
|
19 in
|
|
Overall Depth
|
1.5 in
|
|
Core Width
|
26 in
|
|
Core Height
|
18 in
|
|
Inlet Side
|
Passenger Side
|
|
Inlet Upper/Lower
|
Upper
|
|
Inlet A Size
|
1-5/8-12 in
|
|
Inlet A Style
|
Female
|
|
Inlet O-Ring
|
Yes
|
|
Inlet Quantity
|
1
|
|
Outlet Side
|
Passenger Side
|
|
Outlet Upper/Lower/Middle
|
Lower
|
|
Outlet A Size
|
1.75 in
|
|
Outlet A Style
|
Hose Barb
|
|
Outlet Quantity
|
1
|
|
Tube Size
|
1.5 in
|
|
Water Pressure Bung Included
|
Yes
|
|
Water Pressure Bung Size
|
1/4 in NPT
|
|
Flow Direction
|
Crossflow
|
|
Cap Included
|
No
|
|
Filler
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Black
|
|
Finish
|
Paint
|
|
Quantity
|
Each
|
