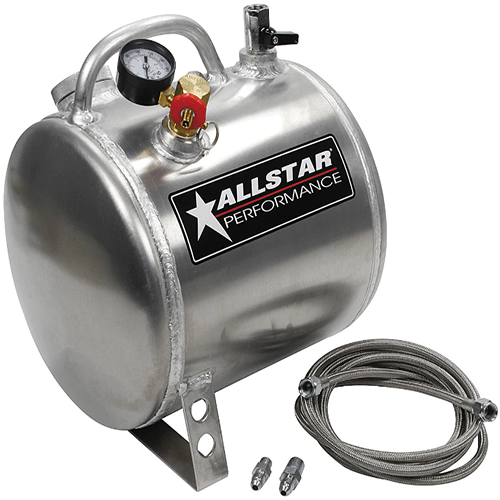

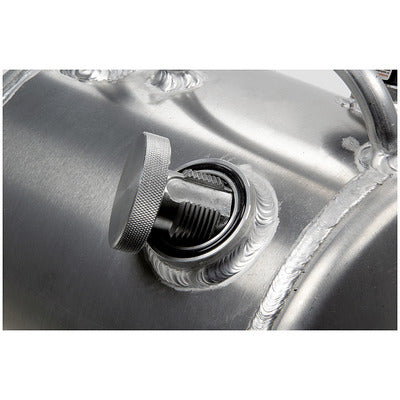

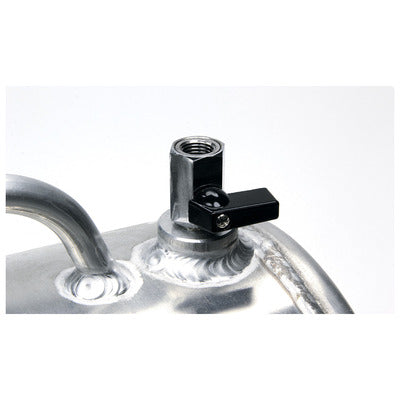

The Allstar Engine Oil Pressure Primer Tank supplies initial oil to the oil pump in engines equipped with a crank driven oil pump. Fill primer tank with engine oil then apply compressed air to force the fluid throughout the engine via the oil pressure sender/switch port to pre-lube the entire engine including the oil pump. Tank features include a fill cap with safety pressure release slot (sealed by o-ring), an easy to read pressure gauge and a quarter turn on/off supply valve. The oil supply line is a durable 90" long steel braided hose with -4AN ends and includes a fitting with male 1/8"-27NPT threads. Adapter fittings sold separately.
Specifications
|
Brand
|
Allstar Performance
|
|
Part Number
|
ALL10535
|
|
Intended Application
|
Oil Pump Primer
|
|
Length
|
11 in
|
|
Diameter
|
9 in
|
|
Capacity
|
4 qt
|
|
Cap Included
|
Yes
|
|
Outlet Quantity
|
1
|
|
Outlet Size
|
1/8 in NPT
|
|
Outlet Style
|
Female
|
|
Shutoff Valve
|
Yes
|
|
Fittings Included
|
Yes
|
|
Fitting 1 Quantity
|
1
|
|
Fitting 1 Side 1 Size
|
1/8 in NPT
|
|
Fitting 1 Side 1 Style
|
Male
|
|
Fitting 1 Side 2 Size
|
4 AN
|
|
Fitting 1 Side 2 Style
|
Male
|
|
Fitting 2 Quantity
|
1
|
|
Fitting 2 Side 1 Size
|
1/8 in NPT
|
|
Fitting 2 Side 1 Style
|
Female
|
|
Fitting 2 Side 2 Size
|
4 AN
|
|
Fitting 2 Side 2 Style
|
Male
|
|
Hose Included
|
Yes
|
|
Hose Size
|
4 AN
|
|
Hose Length
|
90 in
|
|
Pressure Gauge
|
Yes
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Kit
|
