Air Flow Research

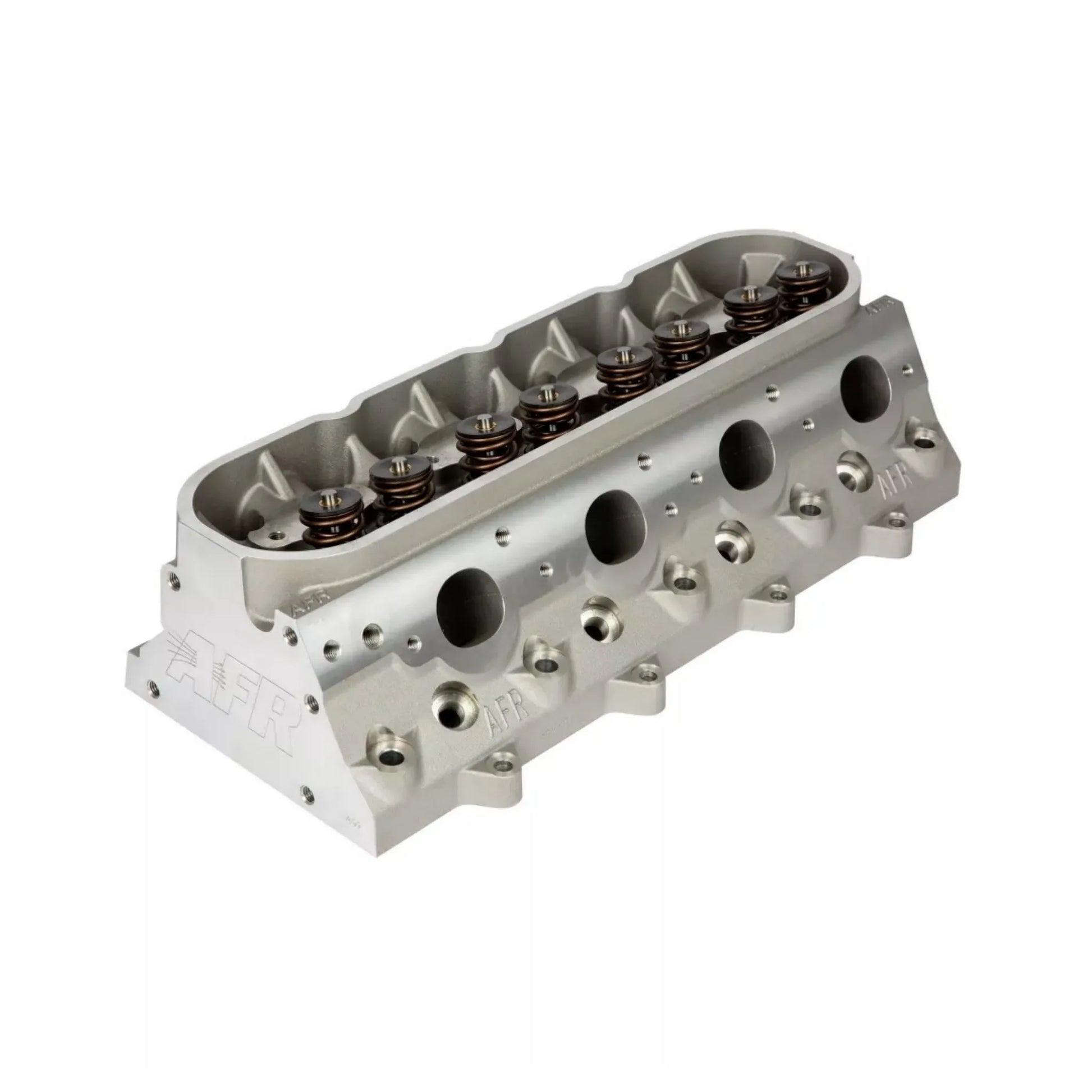

Air Flow Research LS3 Enforcer Cylinder Head 1803
Air Flow Research LS3 Enforcer Cylinder Head 1803
Regular price
$835.00 USD
Regular price
Sale price
$835.00 USD
Unit price
/
per
SKU:AFR1803
Inventory: 3 in stock
Couldn't load pickup availability
Cylinder Head, LS3 Enforcer, Assembled, 2.080 / 1.600 in Valves, 283 cc Intake, 72 cc Chamber, 1.270 in Springs, Angle Plug, Aluminum, GM LS-Series,
- LS3 Enforcer Cylinder Head (Assembled)
- Sold as Each
- Brand: Air Flow Research
- Part Number: 1803
|
Brand
|
Air Flow Research
|
|
Part Number
|
1803
|
|
Product Line
|
LS3 Enforcer
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
72 cc
|
|
Plug Angle
|
Angle
|
|
Intake Runner Volume
|
238 cc
|
|
Exhaust Runner Volume
|
92 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Exhaust Port Shape
|
Round
|
|
Exhaust Port Location
|
Stock
|
|
Intake Valve Size
|
2.080 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Exhaust Valve Size
|
1.600 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Valve Spring Included
|
Yes
|
|
Intended Camshaft Style
|
Hydraulic Roller
|
|
Maximum Lift
|
0.600 in
|
|
Maximum RPM
|
6500
|
|
Valve Spring Diameter
|
1.270 in
|
|
Valve Spring Number
|
Dual
|
|
Valve Spring Damper
|
No
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Titanium
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Chromoly
|
|
Valve Lock Angle
|
7 Degree
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Material
|
Viton
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Center Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
CNC Machined
|
|
Intake Runner Finish
|
CNC Machined
|
|
Exhaust Runner Finish
|
CNC Machined
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
