AFR BBF 295cc Bullitt CNC Cylinder Heads 75cc Assembled 3817
AFR BBF 295cc Bullitt CNC Cylinder Heads 75cc Assembled 3817
SKU:AFR3817
Inventory: 1 in stock
Couldn't load pickup availability

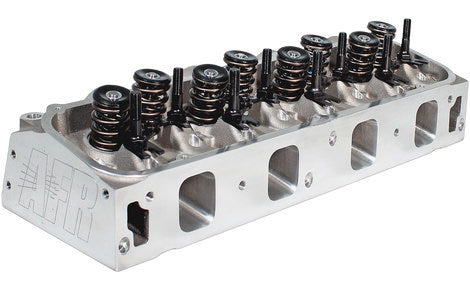

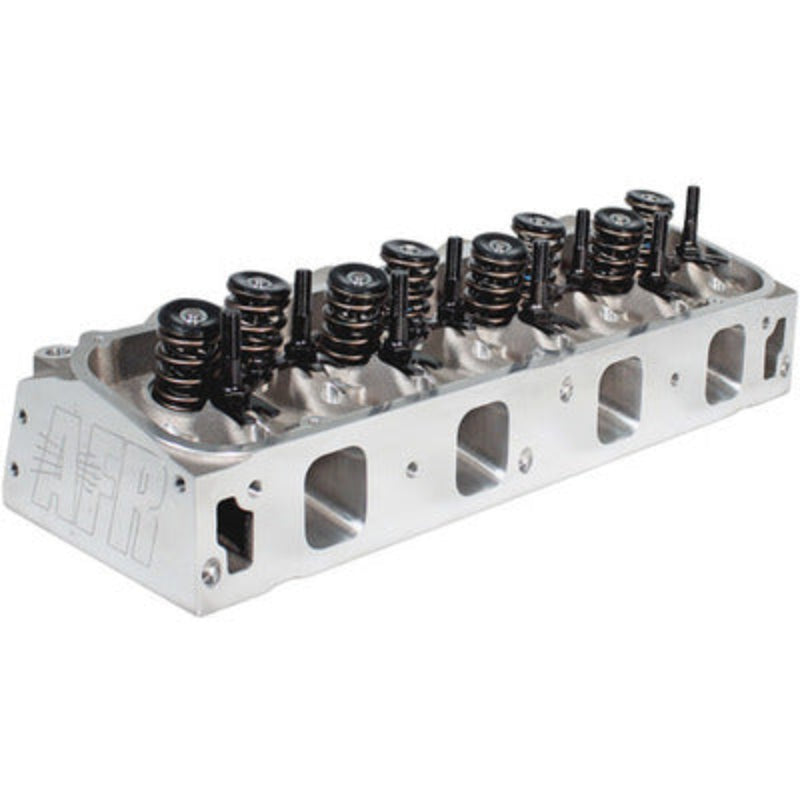

AFR Bullitt 14° Aluminum Cylinder Heads
The AFR Bullitt line of cylinder heads for the Big Block Ford features a different port shape with a more consistent cross-section area and new valve positioning compared to the factory pieces. This new clean-sheet design improves engine response and increases horsepower and torque. Made of A356 aluminum castings, they feature 100% CNC-ported intake and exhaust chambers and high-quality components throughout. Recommended for more aggressive street/strip or race builds with displacements up to 512 CID operating up to 6500 RPM. Sold in pairs.
Note: Due to AFR's valve angle and location, custom pistons or notching existing pistons will be required.
Cylinder Head - Bullitt - Assembled - 2.250 / 1.760 in Valves - 295 cc Intake - 75 cc Chamber - 1.625 in Springs - Aluminum - Big Block Ford - Sold as a Pair - Brand: Air Flow Research - Part Number: 3817
|
Brand
|
AFR (Air Flow Research)
|
|
Part Number
|
3817
|
|
Product Line
|
Bullitt
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
75 cc
|
|
Plug Angle
|
Angle
|
|
Intake Runner Volume
|
295 cc
|
|
Exhaust Runner Volume
|
142 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Intake Port Height
|
2.275 in
|
|
Intake Port Width
|
1.850 in
|
|
Exhaust Port Shape
|
Square
|
|
Exhaust Port Location
|
Stock
|
|
Exhaust Port Height
|
1.850 in
|
|
Exhaust Port Width
|
1.600 in
|
|
Intake Valve Size
|
2.250 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Intake Valve Length
|
5.245 in
|
|
Exhaust Valve Size
|
1.760 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Exhaust Valve Length
|
5.050 in
|
|
Valve Spring Included
|
Yes
|
|
Intended Camshaft Style
|
Solid Roller
|
|
Maximum Lift
|
0.850 in
|
|
Maximum RPM
|
7600
|
|
Valve Spring Diameter
|
1.625 in
|
|
Valve Spring Number
|
Dual
|
|
Valve Spring Damper
|
No
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Chromoly
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Chromoly
|
|
Valve Lock Angle
|
10 Degree
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Material
|
Viton
|
|
Rocker Studs Included
|
Yes
|
|
Rocker Stud Size
|
7/16-20 in
|
|
Pushrod Guide Plate Included
|
Yes
|
|
Guide Plate Pushrod Size
|
3/8 in
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Perimeter Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
CNC Machined
|
|
Intake Runner Finish
|
CNC Machined
|
|
Exhaust Runner Finish
|
CNC Machined
|
|
Intake Valve Angle
|
14 Degree
|
|
Exhaust Valve Angle
|
8 Degree
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Pair
|
