Air Flow Research
BBC 325cc Enforcer Cylinder Head 122cc Assembled 3001
BBC 325cc Enforcer Cylinder Head 122cc Assembled 3001
Regular price
$1,024.00 USD
Regular price
Sale price
$1,024.00 USD
Unit price
/
per
SKU:AFR3001
Inventory: 2 in stock
Couldn't load pickup availability

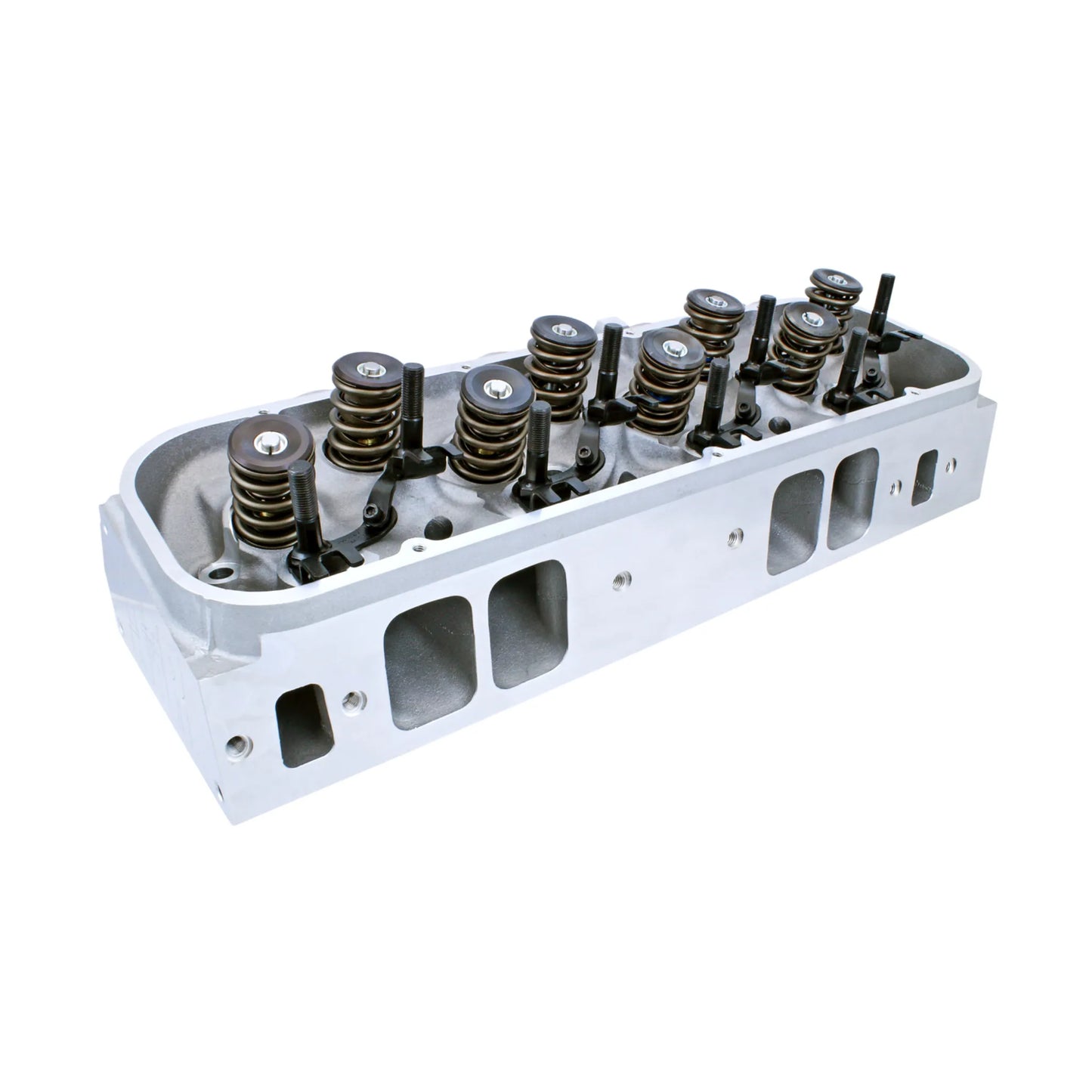

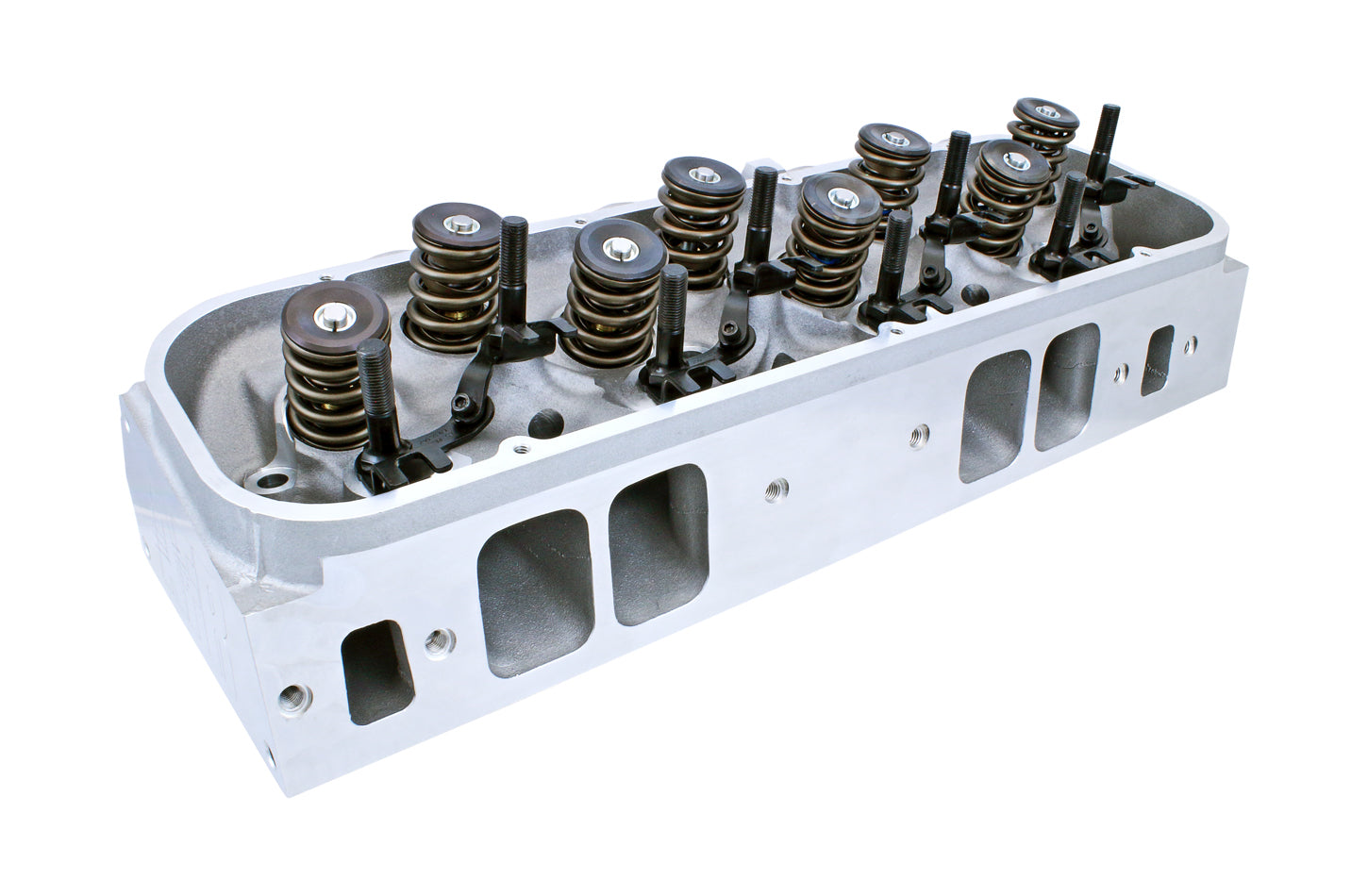

Enforcer Aluminum Cylinder Heads
This affordable, as-cast aluminum cylinder head is ideal for budget-minded, dual-purpose street/strip applications. Sold completely assembled, Enforcer heads are fitted with high-quality components including ARP rocker studs, PAC Racing springs, Viton valve seals, ductile iron seats and stainless steel valves. Sold individually.
Cylinder Head - Enforcer - Assembled - 2.250 / 1.880 in Valves - 325 cc Intake - 122 cc Chamber - 1.550 in Springs - Aluminum - Big Block Chevy - Sold as Each - Brand: Air Flow Research - Part Number: 3001
|
Brand
|
Air Flow Research
|
|
Part Number
|
3001
|
|
Product Line
|
BBC Enforcer
|
|
Assembled/Bare
|
Assembled
|
|
Chamber Volume
|
122 cc
|
|
Intake Runner Volume
|
335 cc
|
|
Exhaust Runner Volume
|
140 cc
|
|
Intake Port Shape
|
Rectangle
|
|
Intake Port Location
|
Stock
|
|
Intake Port Height
|
2.510 in
|
|
Intake Port Width
|
1.820 in
|
|
Exhaust Port Shape
|
Square
|
|
Exhaust Port Location
|
Raised
|
|
Exhaust Port Raised Distance
|
0.357 in
|
|
Exhaust Port Height
|
1.690 in
|
|
Exhaust Port Width
|
1.900 in
|
|
Exhaust Port Bolt Pattern
|
Stock
|
|
Intake Valve Size
|
2.250 in
|
|
Intake Valve Included
|
Yes
|
|
Intake Valve Material
|
Stainless
|
|
Intake Valve Length
|
5.500 in
|
|
Exhaust Valve Size
|
1.880 in
|
|
Exhaust Valve Included
|
Yes
|
|
Exhaust Valve Material
|
Stainless
|
|
Exhaust Valve Length
|
5.450 in
|
|
Valve Spring Included
|
Yes
|
|
Intended Camshaft Style
|
Hydraulic Roller
|
|
Maximum Lift
|
0.725 in
|
|
Maximum RPM
|
6700
|
|
Valve Spring Diameter
|
1.550 in
|
|
Valve Spring Number
|
Dual
|
|
Valve Spring Damper
|
No
|
|
Valve Spring Retainers Included
|
Yes
|
|
Valve Spring Retainer Material
|
Steel
|
|
Valve Locks Included
|
Yes
|
|
Valve Lock Material
|
Steel
|
|
Valve Lock Angle
|
10 Degree
|
|
Valve Seal Included
|
Yes
|
|
Valve Seal Style
|
Positive Stop
|
|
Valve Seal Material
|
Viton
|
|
Rocker Studs Included
|
Yes
|
|
Rocker Stud Size
|
7/16-20 in
|
|
Pushrod Guide Plate Included
|
Yes
|
|
Guide Plate Pushrod Size
|
3/8 in
|
|
Valve Guide Included
|
Yes
|
|
Valve Guide Material
|
Bronze
|
|
Perimeter Mount Valve Cover
|
Yes
|
|
Valve Seat Included
|
Yes
|
|
Intake Valve Seat Material
|
Ductile Iron
|
|
Exhaust Valve Seat Material
|
Ductile Iron
|
|
Valve Seat Finish
|
Machined
|
|
Combustion Chamber Finish
|
As Cast
|
|
Intake Runner Finish
|
As Cast
|
|
Exhaust Runner Finish
|
As Cast
|
|
Intake Valve Angle
|
24/4 Degree
|
|
Exhaust Valve Angle
|
15/4 Degree
|
|
Material
|
Aluminum
|
|
Color
|
Natural
|
|
Finish
|
Natural
|
|
Quantity
|
Each
|
